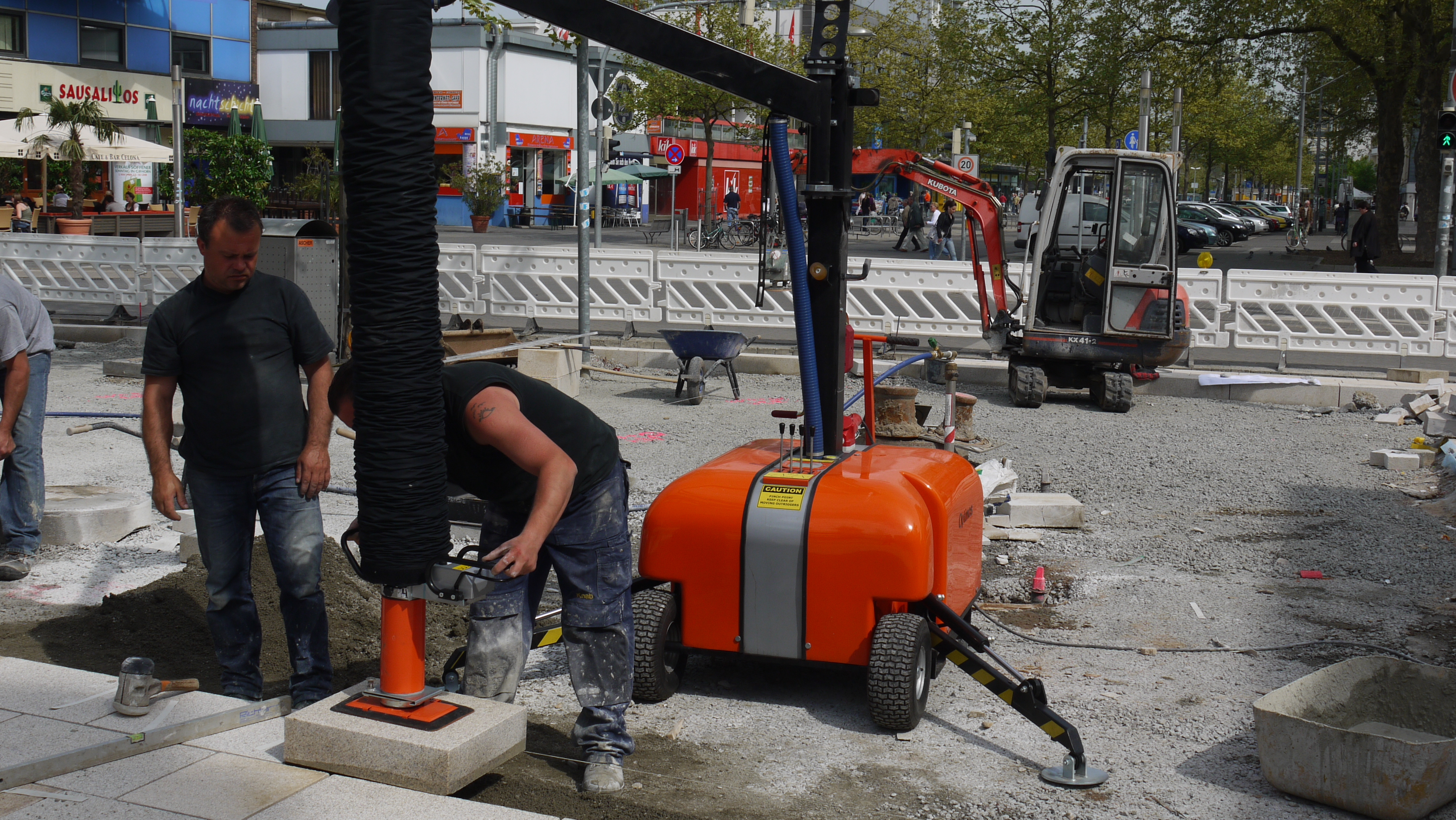

Optimas Vacu-Mobil E - placing heavy concrete slabs

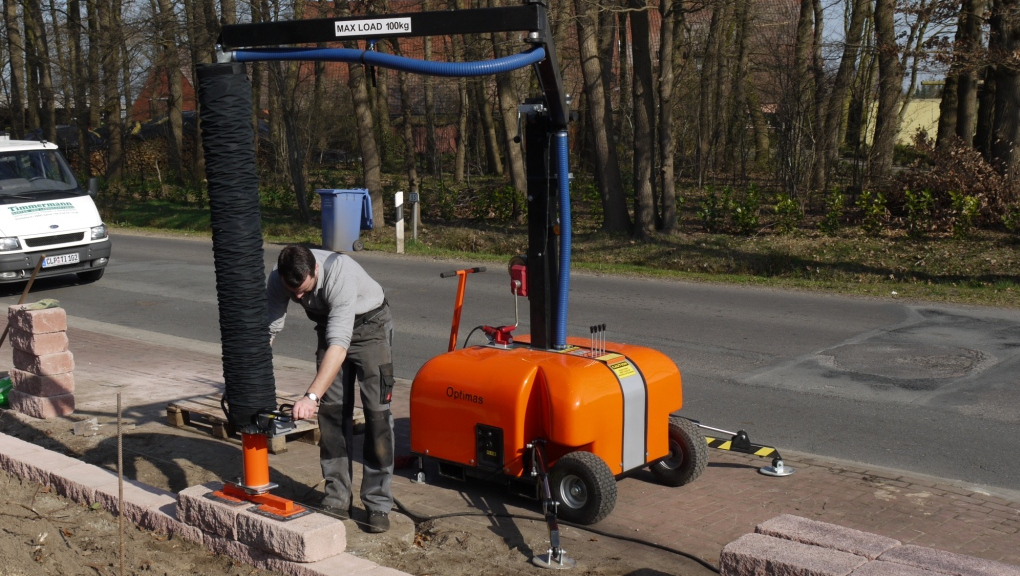

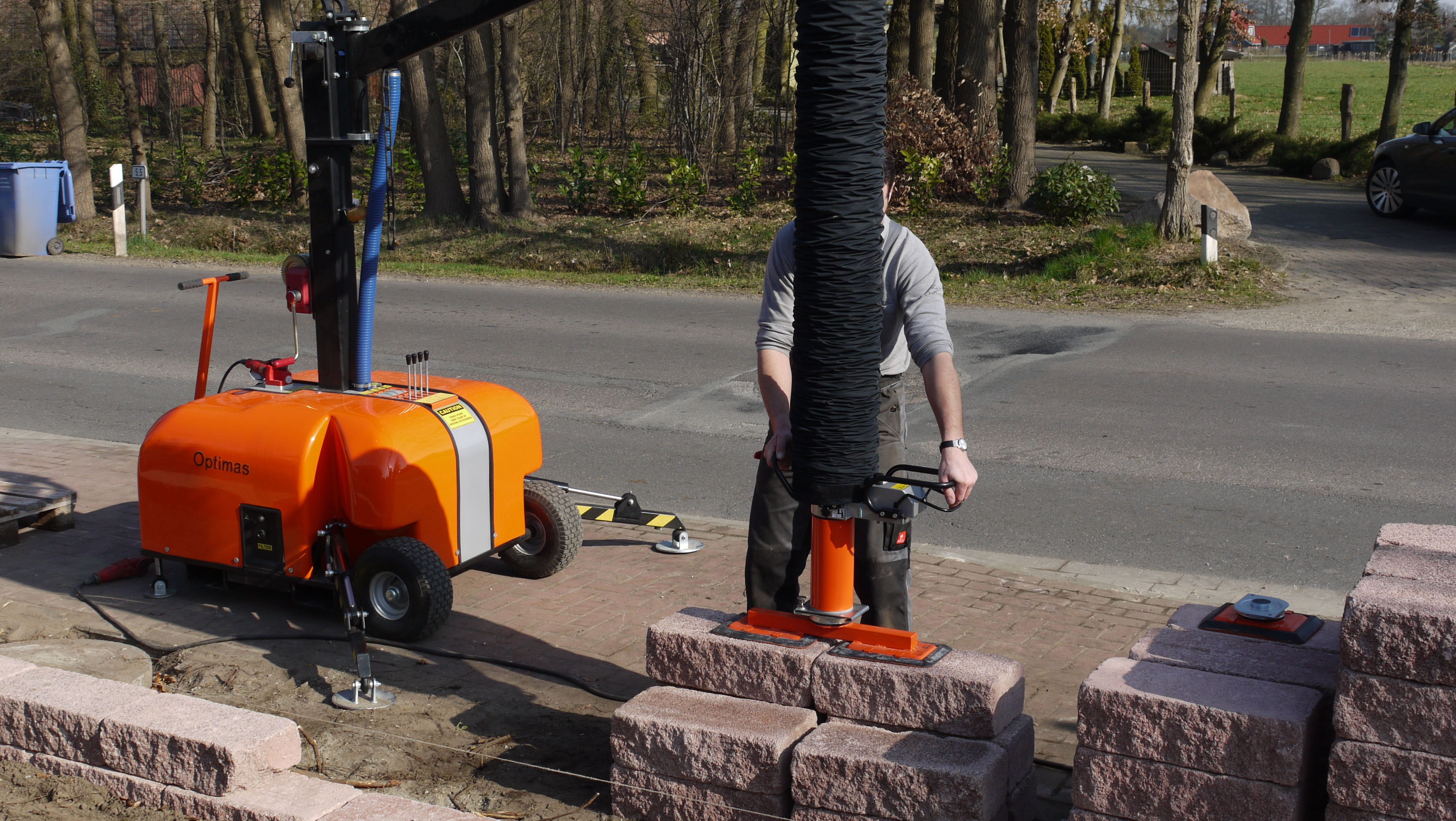

Optimas Vacu-Mobil E: placing wall stones

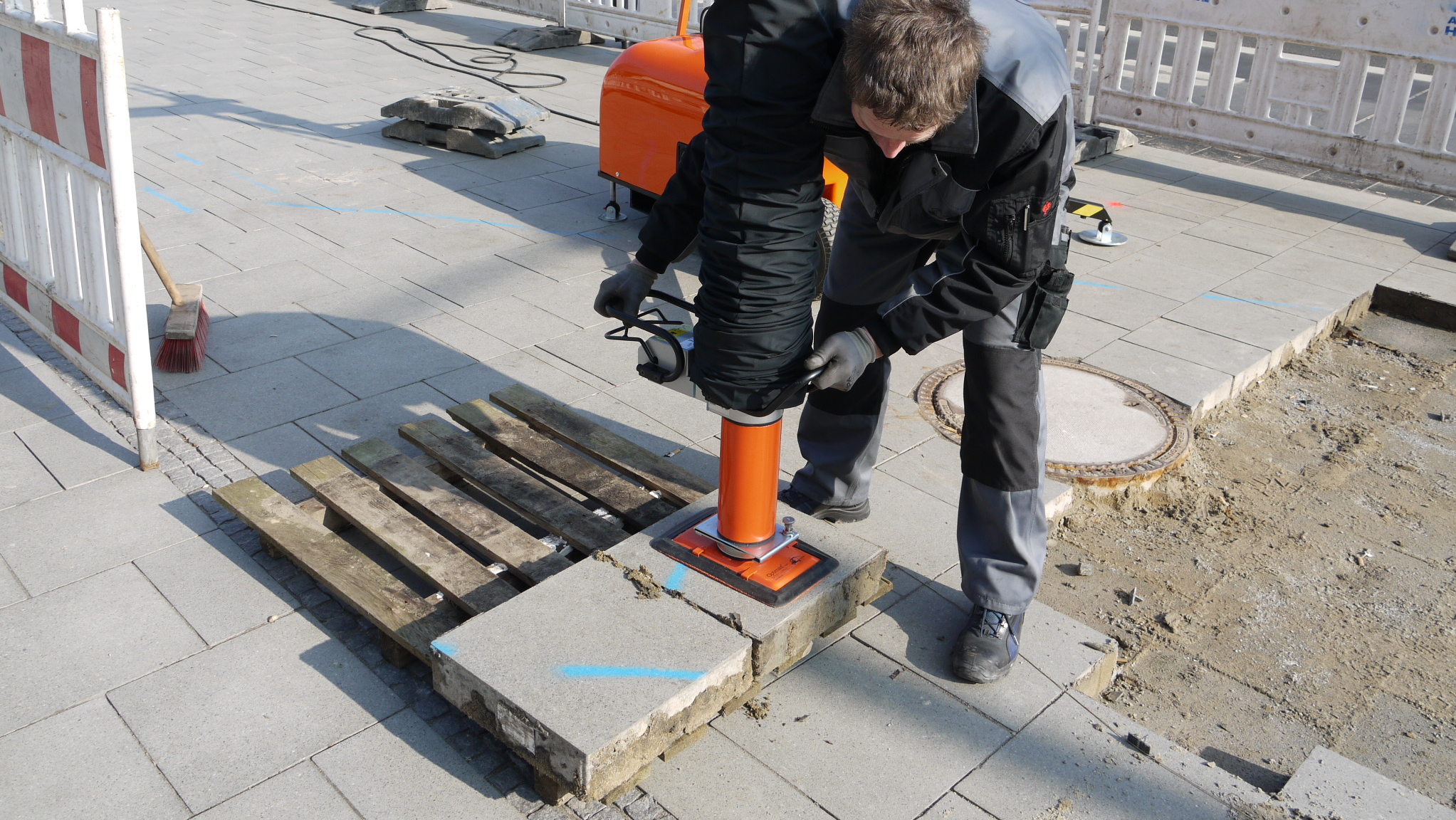

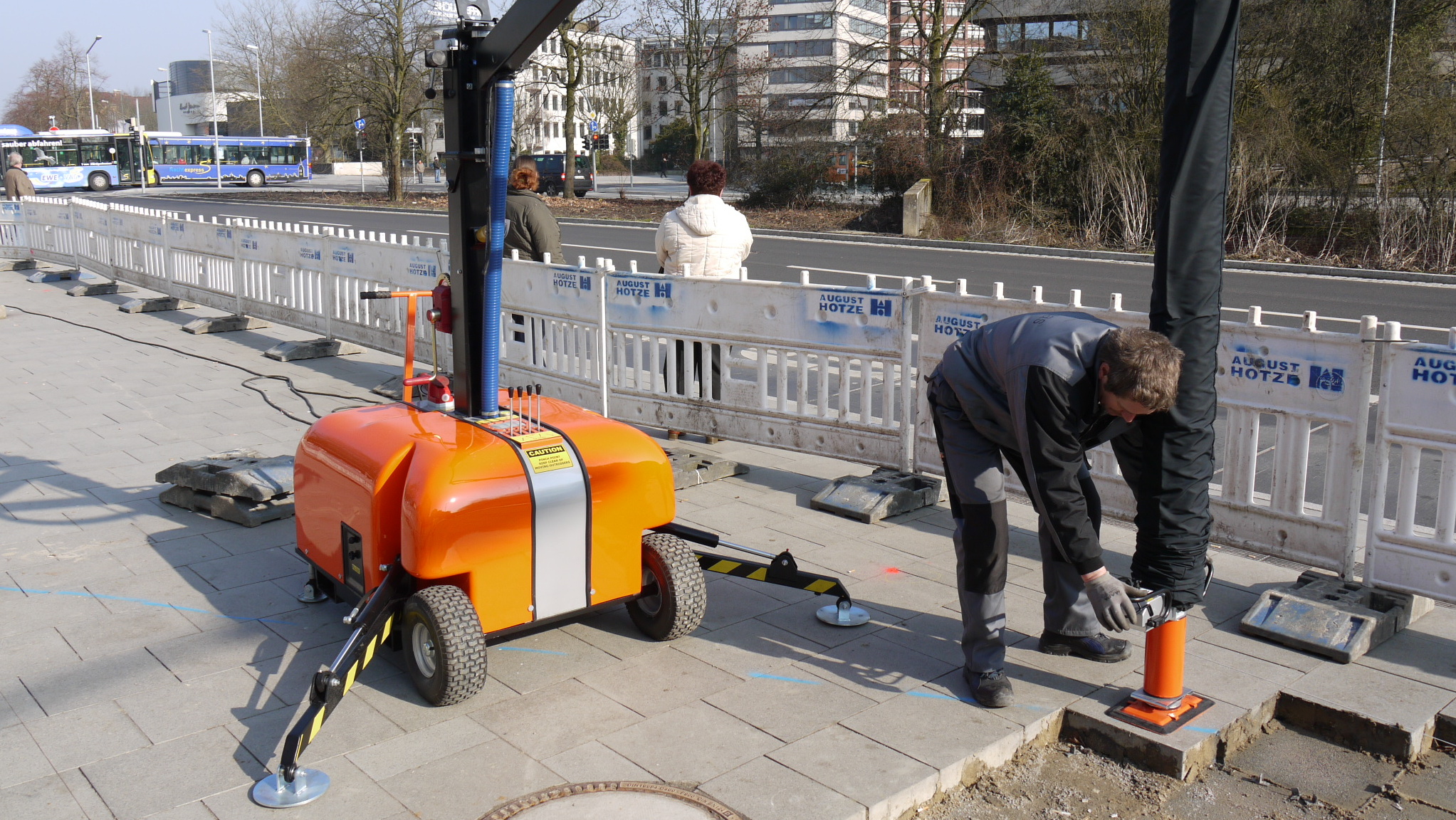

Optimas Vacu-Mobil E: placing paving slabs

Art-No. 51902

Using its integrated vacuum hose lifting equipment, the Mobil E performs weightless, exact and economical paver laying for concrete and natural stone elements of up to 140 kg. Above all, it is silent - thanks to its electric motor.

Product Video laying kerb and wall stones
Product Video laying paving stones1- or 2-row

Array ( [id] => 17 [description] => Prospekt Download [filename] => https://optimas.de/media/pdf/7f/aa/7a/Prospekt-Vacu-Mobil_E.pdf [size] => 1632708 [attributes] => Array ( [core] => Shopware\Bundle\StoreFrontBundle\Struct\Attribute Object ( [storage:protected] => Array ( [id] => 6 [downloadID] => 17 [downloadfrontendname] => Brochure Download [downloadlinktranslatable] => 2285 [hidedownloadinshop] => 0 ) ) ) ) 1

Brochure Download
Manual / Spare parts list

Vacu-Mobil E

The silent running of the electric motor suits the device to operation in locations in which... more

Close menu

Vacu-Mobil E

The silent running of the electric motor suits the device to operation in locations in which noise must be minimized (e.g. pedestrian zones).

The compact design of this device means that it can be transported on a car trailer.

Advantages

Flexible deployment
Simple operation
Quick amortization
Healthy working practices
Motivated workers

Laying pavers and slabs with the Optimas Vacuum tube lifter
Optional:
Joints spacing aid - additional module for suction pads
Paving stones and slabs safely laid with the proper "distance"
Further information here

Clamping devices „Ankerfix AP/Solo“
Slabs of concrete or natural stone safely laid with shifting protection (anchor technology) by using Optimas clamping devices.
Further information here

Foldable boom arm enables smooth laying on confined construction sites, e.g. on house walls or... more

Close menu

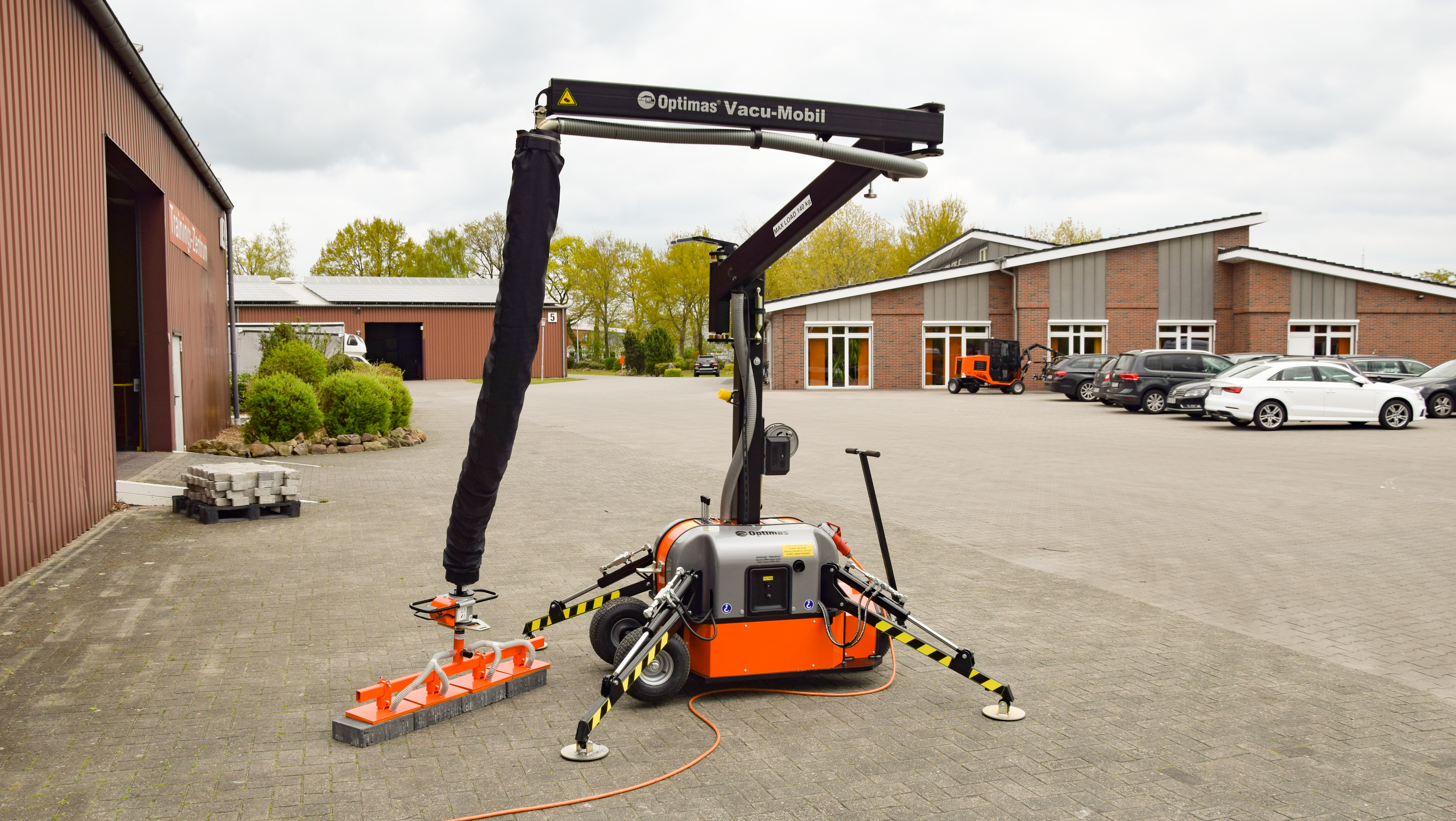

Foldable boom arm enables smooth laying on confined construction sites, e.g. on house walls or rows of trees.

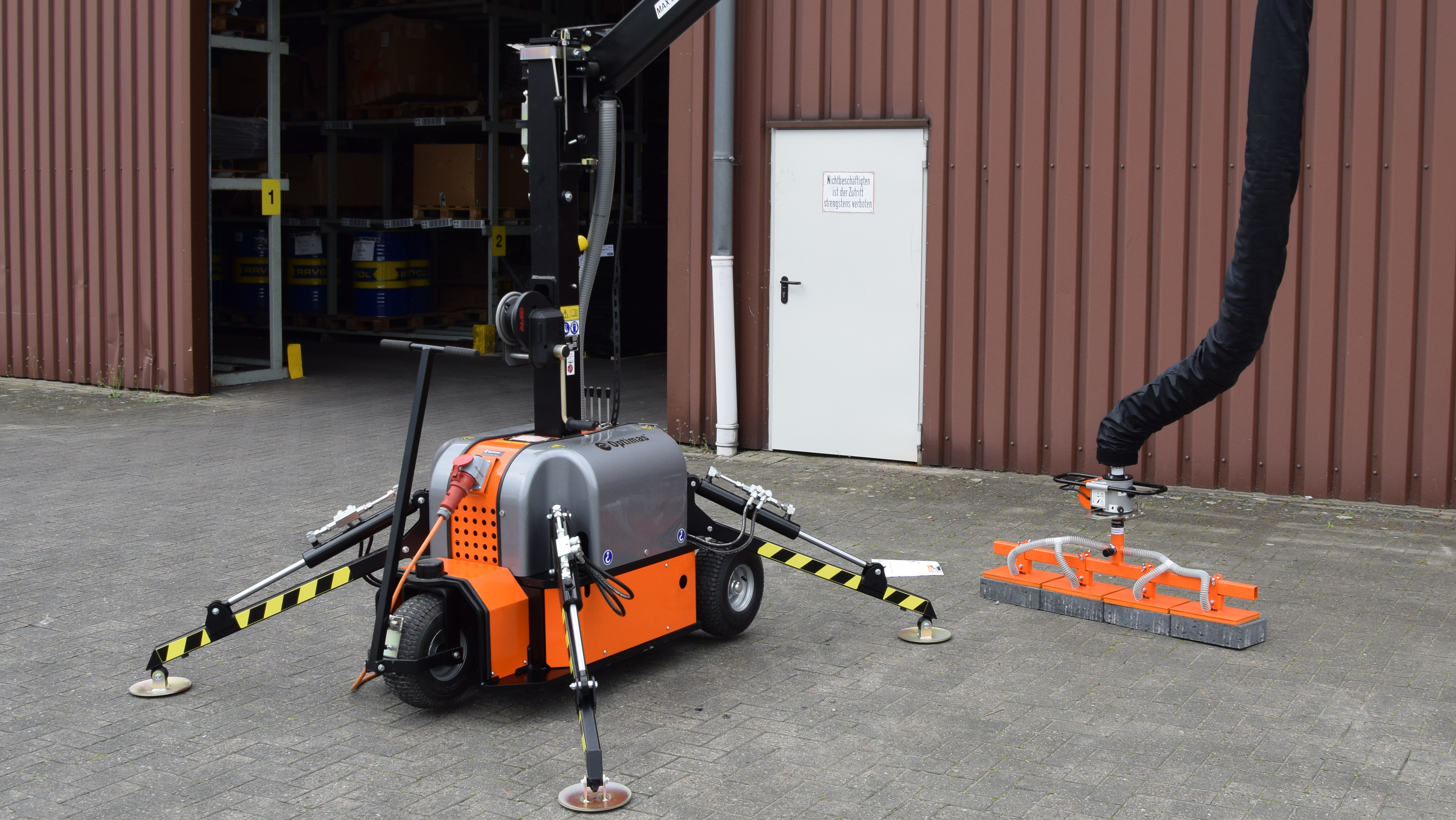

The 4 hydraulically controlled supporting legs make it very easy to balance the machine and bring it to a safe stand.

The mast can be folded very easily by one person in a few minutes. This results in a very compact device for transport and storage with almost no set-up time.

Suction pads can be exchanged very quickly and conveniently by means of a simple quick-change system.

Suction pads available for all curbs, gutter stones as well as slabs and stone elements made of concrete or natural stone up to 200 kg.

Vacuum suction pads for up to 12 paving stones or slabs at a time (depending on size) are available. Even 12 stones up to 140 kg can be installed effortlessly.

New: Suction pads that lift 2 rows of stones and shift them into ½ stone or 1/3 stone bond with a shifting mechanism.

Close menu

Vacuum pump:	3 phases 400 Volt, 2.2 kW, 0.65 bar max. vacuum pressure
Hydraulic pump:	3 phases 400 Volt, 0.37 kW, 210 bar max.
Lifting capacity jib arm:	140 kg (optional 2.75 m (9 ft.) - 170 kg (375 lbs); at 2.48 m (8 ft.) - 200 kg (441 lbs)
Transport dimensions:	L 2473 x W 876,3 x H 2114 mm
Weight:	740 kg (1,631 lbs)
Other:	Swivelling range of the boom: 360° with a working radius of 3.0 m (9.5 ft), Travel speed: 1,5 – 2,2 km/h
Scope of application:	Paving
Type of product:	Machine
