Optimas Stone-Clamp MULTIFLEX

  • 500000
  • Introduced in 1987 as a "world first" (purely mechanical curb clamp).

    A multiflexible attachment for the Optimas paving machine, excavator, wheel loader, etc. for placing concrete and granite kerbs, palisades, L-stones, block steps, natural stones, lawn grids, boulders, etc.

    Array ( [id] => 127 [description] => Prospekt Download [filename] => https://optimas.de/media/pdf/1b/32/a5/Prospekt-Steingreifer-Multiflex-DE-06-2021.pdf [size] => 4118899 [attributes] => Array ( [core] => Shopware\Bundle\StoreFrontBundle\Struct\Attribute Object ( [storage:protected] => Array ( [id] => 112 [downloadID] => 127 [downloadfrontendname] => Brochure Download [downloadlinktranslatable] => 1986 [hidedownloadinshop] => 0 ) ) ) ) 1
  • Brochure Download
  • Manual / Spare parts list
Stone-Clamp MULTIFLEX
The Stone-Clamp MULTIFLEX is very quickly and easily mounted to the Optimas paver laying... more
Stone-Clamp MULTIFLEX

The Stone-Clamp MULTIFLEX is very quickly and easily mounted to the Optimas paver laying machine or, with the appropriate quick-change device, to a carrier (e.g. excavator) and is then ready for use.

The Stone-Clamp MULTIFLEX is standardly suitable for setting concrete and granite curbstones, gutter stones, block steps and various slabs.

By exchanging the clamping jaws (optional), many other applications are possible, e.g. for placing palisades, L-stones, natural stones, lawn grids, boulders and many more.

Please let us know your desired application and we will clarify the technical details and possibilities. The areas of application of the stone grab Multiflex are "almost" unlimited.

Your advantages:
- Reduced workload

- Time saving
- Low personnel expenditure
- Simple assembly
- Wide range of applications

Standard equipment Stone-Clamp MULTIFLEX for Optimas paving machine universal fixture... more

Standard equipment Stone-Clamp MULTIFLEX for Optimas paving machine

  • universal fixture
  • 2 stop handles
  • 2 adjustable guide handles

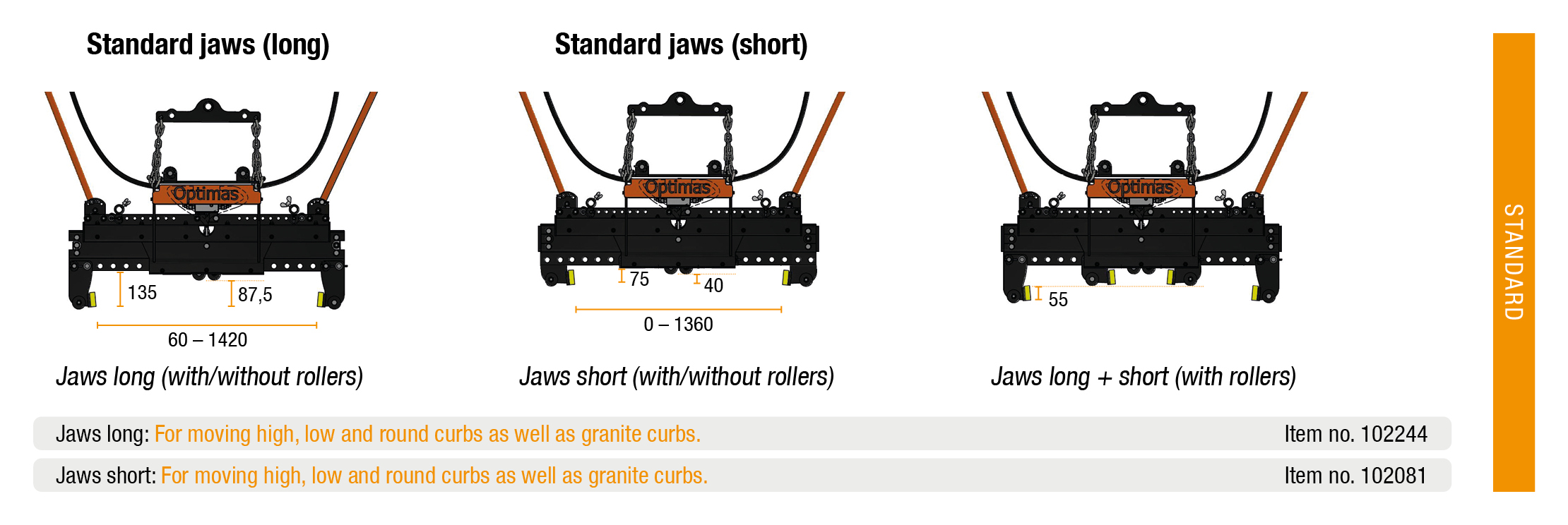

  • 2 sets of jaws (e.g. for setting curbs, block steps and various slabs):
    • 2 rubber jaws 100 mm
    • 2 rubber jaws 160 mm

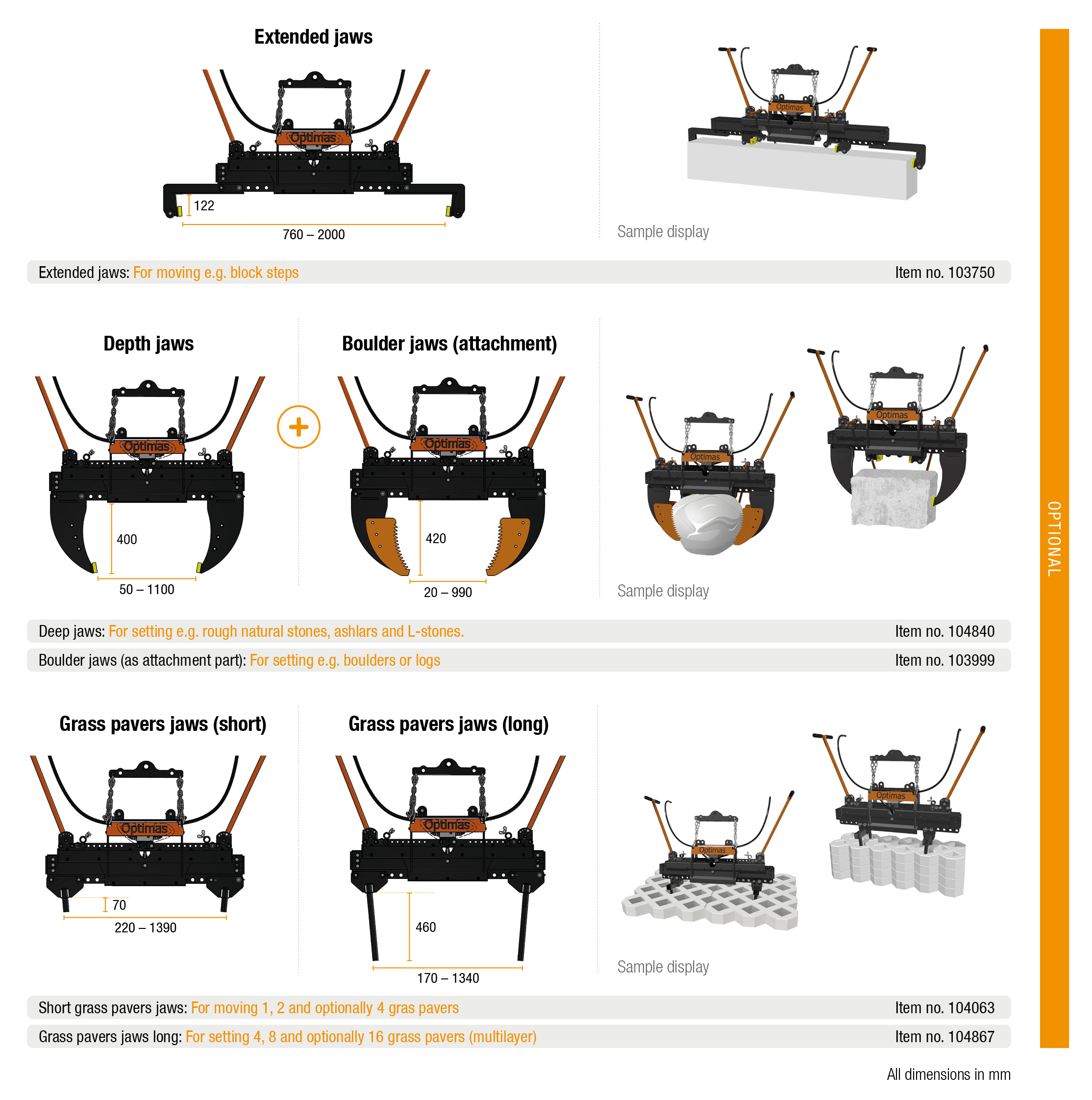

Optional:
Various gripping jaws available for palisades, L-stones, block steps, natural stones, lawn grids, boulders and many more.


Standard equipment Stone-Clamp MULTIFLEX for any carrier device

  • Universal mounting
    MULTIFLEX can be mounted either rigidly or loosely suspended on the carrier machine
  • Hydraulic hoses and couplings to the carrier
  • 2 stop handles
  • 2 adjustable guide handles
  • 2 sets of jaws (e.g. for setting curbs, block steps and various slabs):
    • 2 rubber jaws 75 mm
    • 2 rubber jaws 135 mm

Optional:

  • Rotating motor 360° oil-immersed (2nd circuit required)
  • Quick coupler MS01
  • Quick coupler MS03
  • Quick coupler MS08
  • Various clamping jaws available for palisades, L-stones, block steps, natural stones, lawn grids, boulders, etc.
Lifting capacity: 400 kg
Adjustment range: 0-140 cm (0-55") (optionally up to 200 cm (78"))
Dead weight: 128 kg (282 lbs) (Version for Optimas Paver Laying Machine) / 130 kg (286 lbs) (Version for Carrier Machine)
Scope of application: Placing of kerb and gutter stones, Edging/Haunching
Type of product: Attachments
