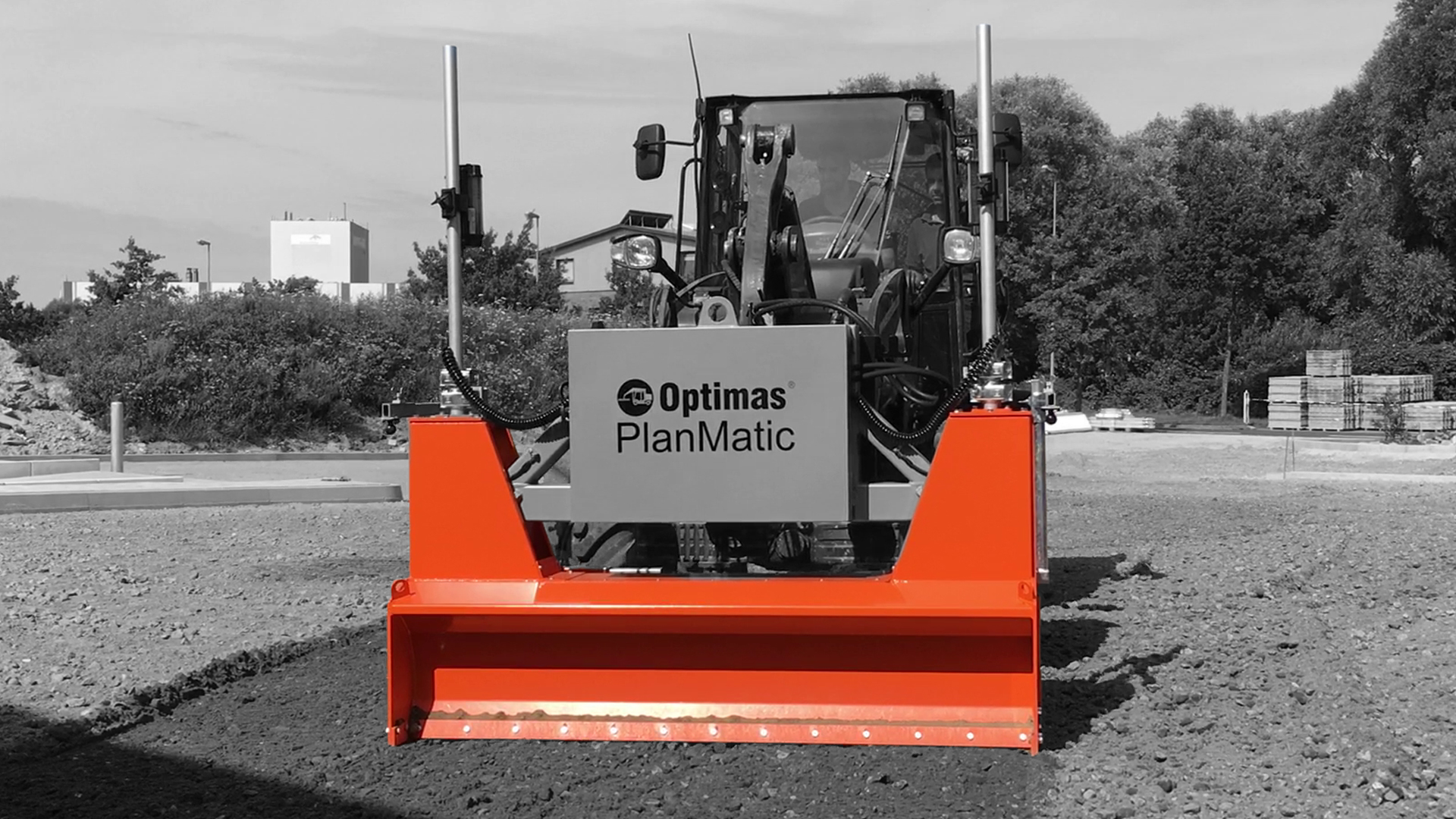

Product information "PlanMatic "Basic""

Available in two basic widths – the work range can be extended by up to 1.2 m using the hydraulic side flaps and the optionally-available extensions. The most effienct working width can be chosen based on the available carrier and the respective jobsite situation.

    PM 1.4 - Width 1,40 m (4,6 ft.)

  •         Working range – 1.40 to 2.00 m (4,6 - 6,6 ft.)
  •         Working range – 1.70 to 2.30 m (5,6 - 7,5 ft.) (with two extensions of 0.15 m (0,5 ft.))
  •         Working range – 2.00 to 2.60 m (6,6 - 8,5 ft.) (with two extensions of 0.30 m (1,0 ft.))


    PM 2.0 - Width 2,00 m (6,60 ft.)

  •         Working range – 2,00 to 2,60 m (6,6 - 8,5 ft.)
  •         Working range – 2,30 to 2,90 m (7,5 - 9,5 ft.) (with two 0,15 m (0,5 ft.) extensions)
  •         Working range – 2,60 to 3,20 m (8,5 - 10,5 ft.) (with two 0.30 m (1,0 ft.) extensions)

 Control System

  •     Especially for Optimas PlanMatic dedicated software.
  •     Only one operating unit – a joystick with a large display – shows the relevant information.
  •     Very simple operation.
  •     Up to 46 carrier machine settings can be saved.
  •     A Leica receiver and Leica ultrasonic sensors as standard – the system is also compatible with
  •     other components from major manufacturers.

With the Optimas PlanMatic, levelling is possible by moving backwards and forwards. Many users distribute the material roughly at height or in order to bring the material right into the corners by moving forward.

The material is brought to the exact height by moving backwards. The levelling screed can be controlled both manually and fully-automatic.

Typically used for levelling of equestrian, sport and tennis surfaces and the levelling of factory floors.

Your advantages:

Attachable to wheel loaders, skid steer loaders, telescopic loaders and tractors with a three-point attachment.

  •     Significant faster
  •     Low manpower requirements (only 1 person)
  •     Minimal reworking
  •     Highly efficient by levelling by driving backward and forard!
  •     Compact design - can also be used very well on narrow construction sites or indoor locations    Screeding also in the corners
  •     Simple operation - short training times
  •     Installation of all base layers - also gravel
  •     No need to install screed rails
  •     Quick-change coupling for each carrier available (optional)
  •     Quick assembly and disassembly (2 min.)
  •     Very low maintenance & logistic costs compared to other solutions
  •     Available with extensions 2x 150 mm and 2x 300 mm (optional)

Basic configuration:

  •     Joystick with display
  •     Mechanical adjustable side flaps on both sides
  •     Laser receiver Leica MLS 720 incl. transport case

 Optional equipment:

  •     30 cm (1 ft.) width extension set (2 x 15cm (0,5 ft.))
  •     60 cm (2 ft.) width extension set (2 x 30cm (1 ft.))
  •     Laser, we recommend: Leica Rugby CLA-ctive fully automatic double tilt
        laser with CLX 700 software package - head rotation up to 15 rpm (900 rpm) /
        1 piece Leica Combo (handheld receiver and remote control in one unit) / Tripod / Flexi rod scale
  •     Laser receiver, linear Leica MLS 820 incl. transport case with a measurement window of 320 mm. MLS 820 offers a clear advantage compared to the standardly used laser receiver MLS 720. Setting of new heights e.g. zero point or a new temporary reference height (e.g. to
        get rid of unnecessary material by screeding it away) can be adjusted without leaving the
        cabin on the control unit. (Instead of leaving the cabin for adjusting heights right at the tripod
        manually).
  •    Quick-change coupling for quick & easy mounting on carrier
  •    Special painting - RAL colour
Technical data "PlanMatic "Basic""
Accuracy: ±4 mm
Cylinder stroke: 200 mm PM1.40 m / 300 mm PM2.00 m
Operating voltage: 12 and 24 volt
Other: Exchangeable blades
Weight: Basic 1.4: 640 kg (1,411 lbs) / Basic 2.0: 750 kg (1,653 lbs)
Width: Width 1,4 m (4,6 ft): Working range without extension: 1,4 - 2,0 m (4,6 - 6,6 ft) / Width 2,0 m (6,6 ft): Working range without extension: 2,0 - 2,6 m (6,6 - 8,5 ft)
