Optimas Side-shoot bucket "Finliner" 0,5 m³/1,0 m³ + 1,4 m³
- Art-No. 54368B
- Video Distribute concrete
- Video Road shoulder maintenance 1
- Video Road shoulder maintenance 2
- Video Pipeline construction
- Video Road shoulder maintenance 3 Array ( [id] => 164 [description] => Prospekt Download [filename] => https://optimas.de/media/pdf/b2/b3/7e/Prospekt_MVS_DE.pdf [size] => 3467181 [attributes] => Array ( [core] => Shopware\Bundle\StoreFrontBundle\Struct\Attribute Object ( [storage:protected] => Array ( [id] => 139 [downloadID] => 164 [downloadfrontendname] => [downloadlinktranslatable] => [hidedownloadinshop] => 1 ) ) ) ) 1
- Manual / Spare parts list
The side-shoot bucket is a multi-talented hidden champion for distribution of concrete for bedding and haunching of kerbs, for backfilling of ditches and canals in line-construction and filling of e.g. container, sacks etc., and last but not least for road shoulder maintenance.

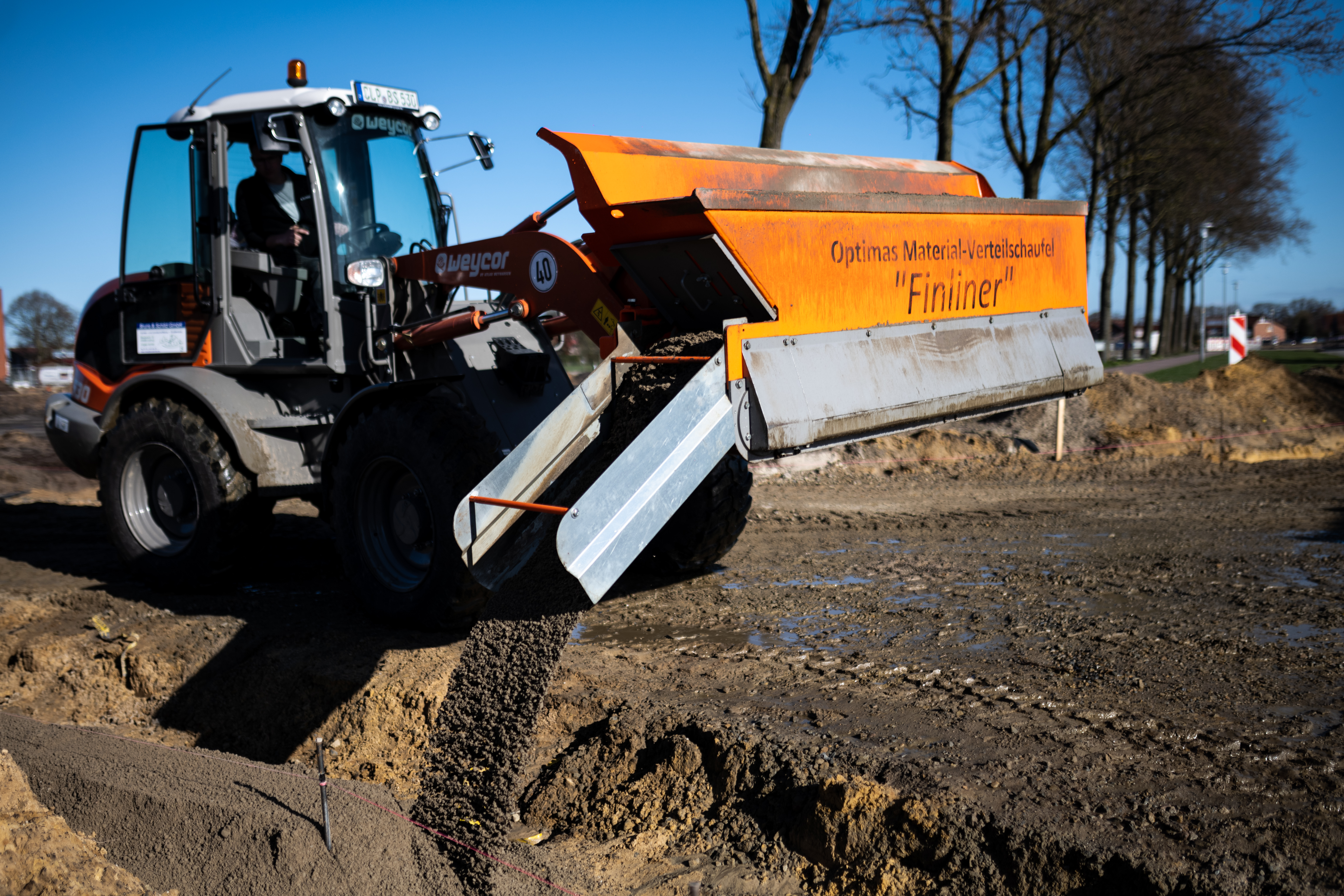

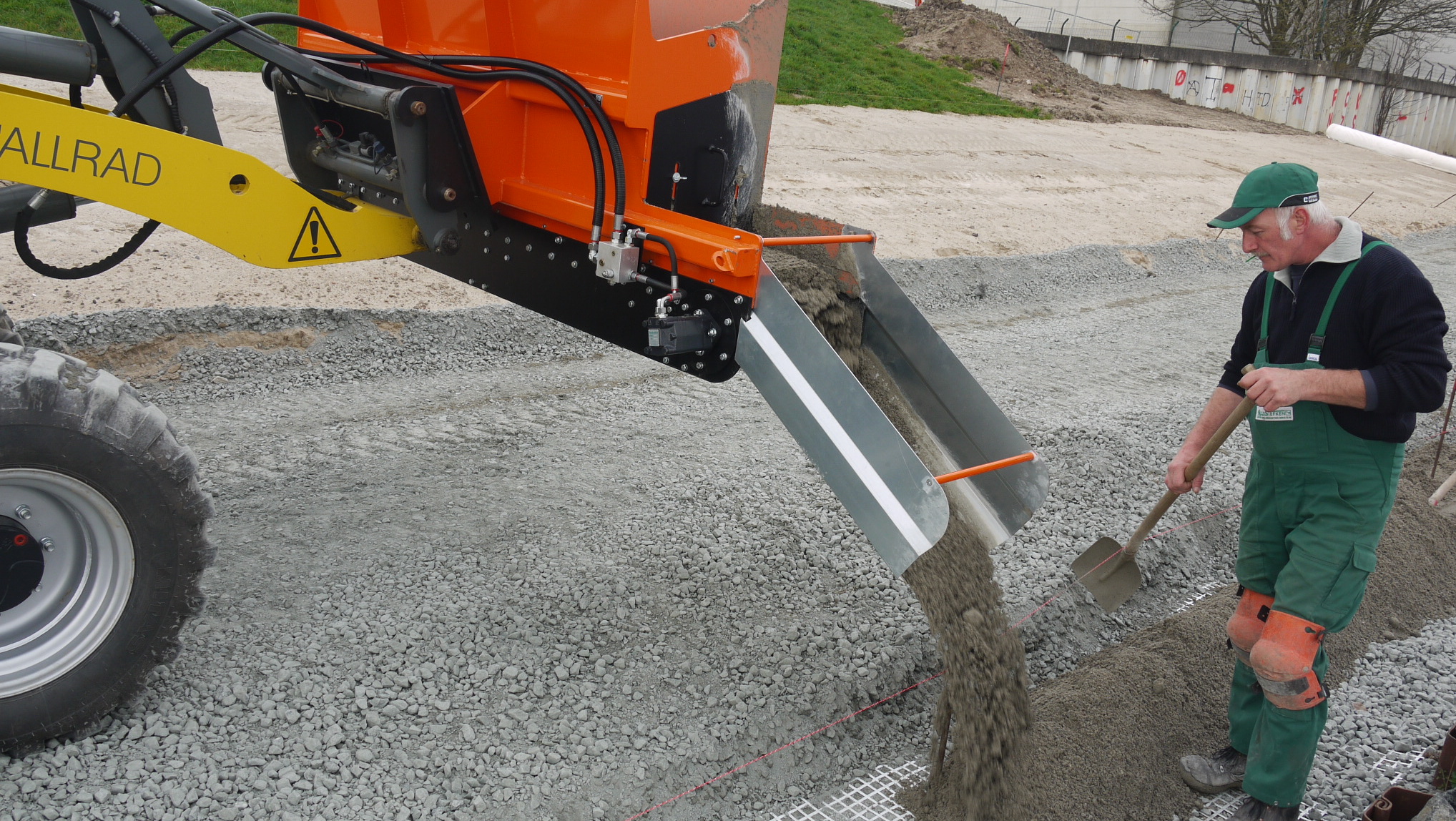

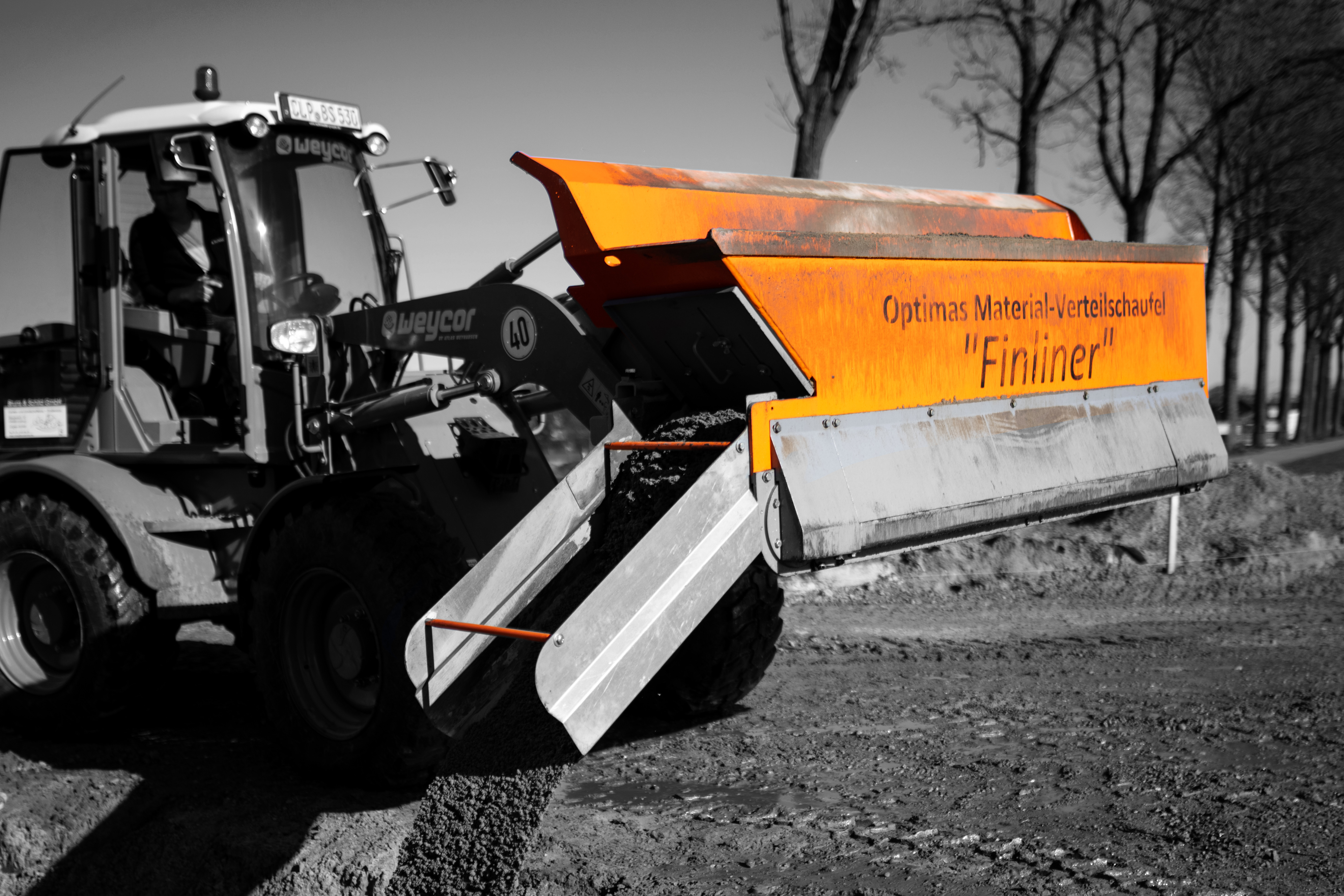

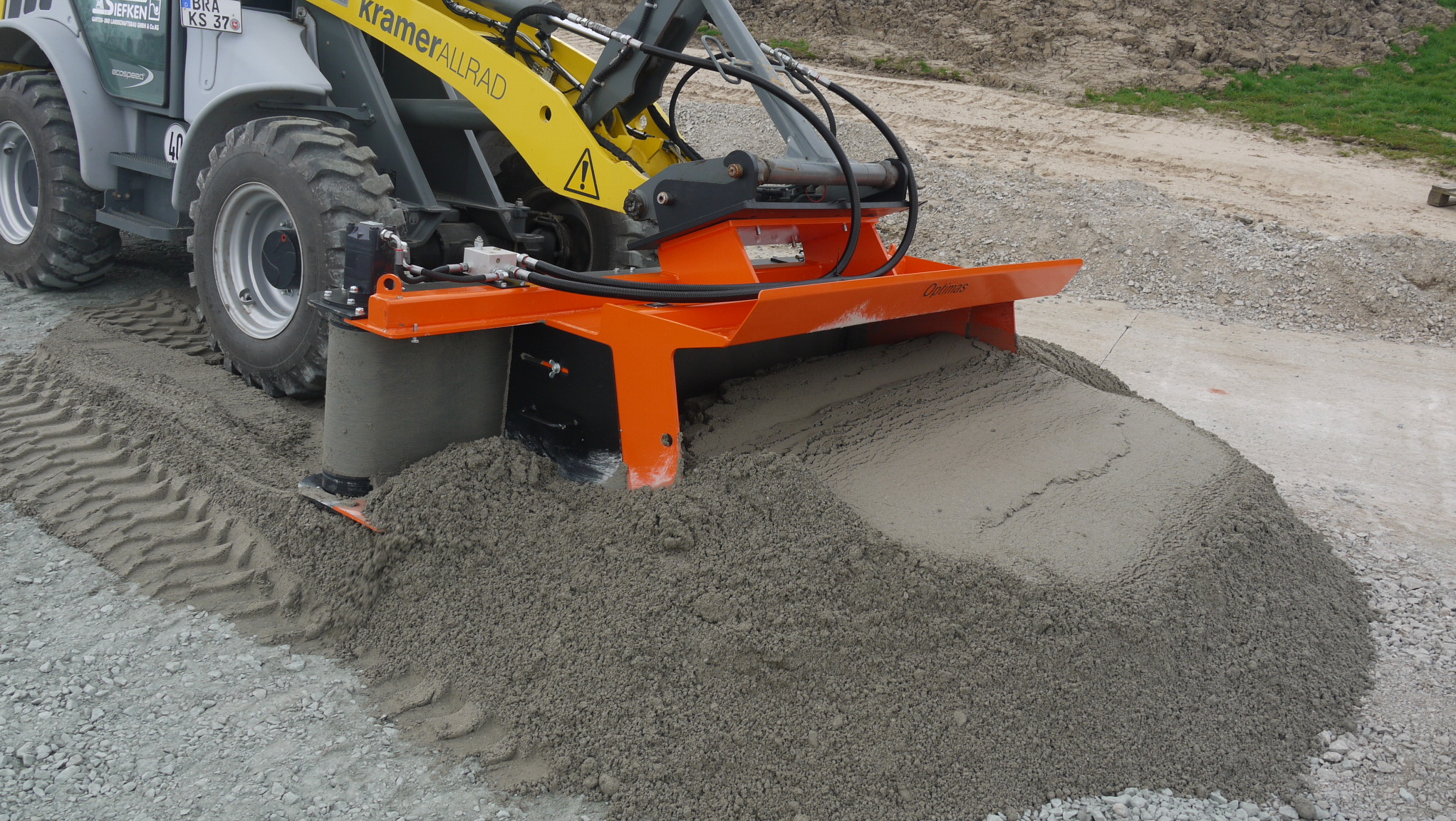

With the "Finliner" it is very easy to distribute material via a conveyor perfectly dosed. The bucket is emptied laterally via a conveyor belt, the amount of material is precisely metered by the speed of the conveyor belt and the loader. The material drops directly in front of the screed blade and will be installed on the proper height. The screed blade is adjustable in height and inclination.

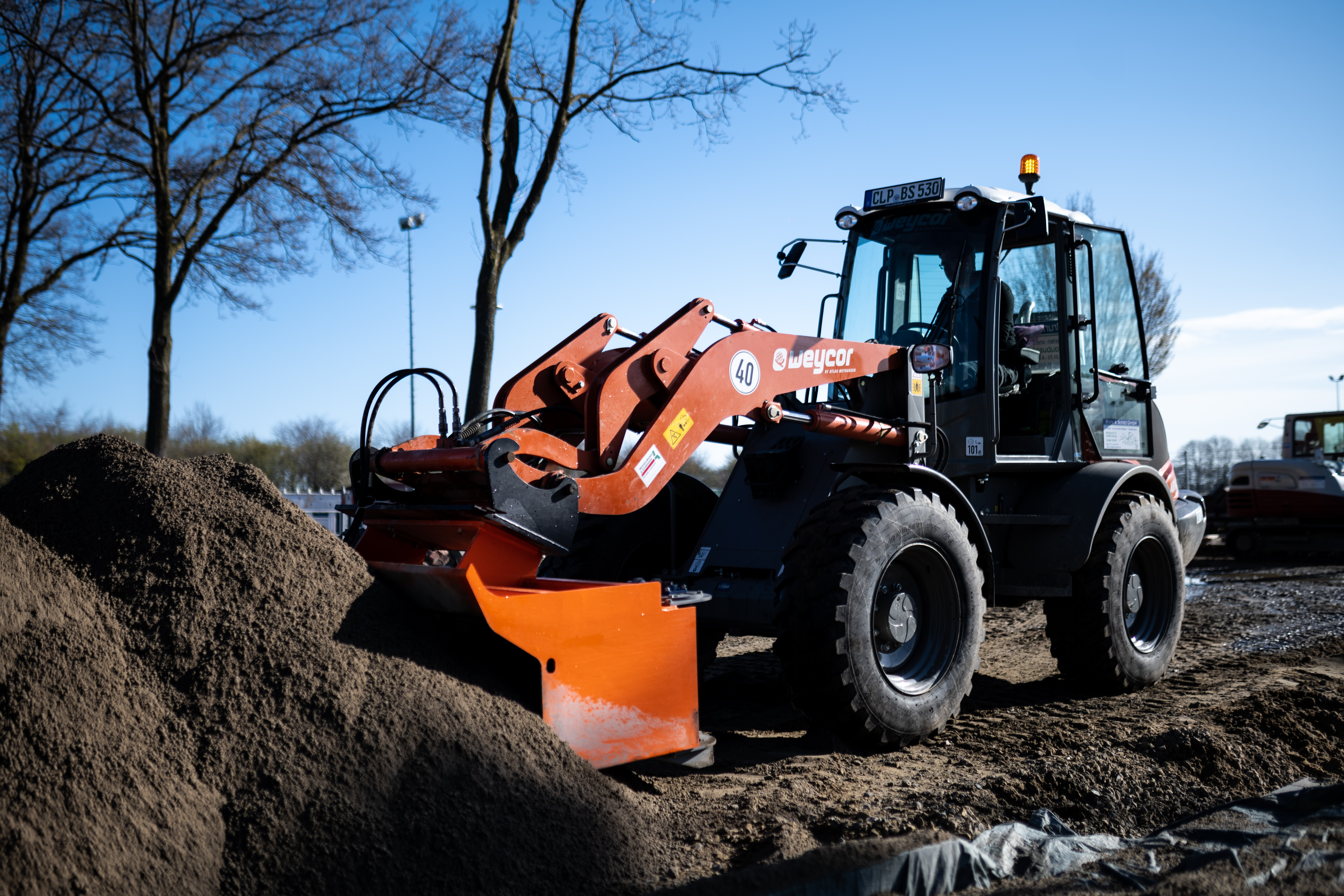

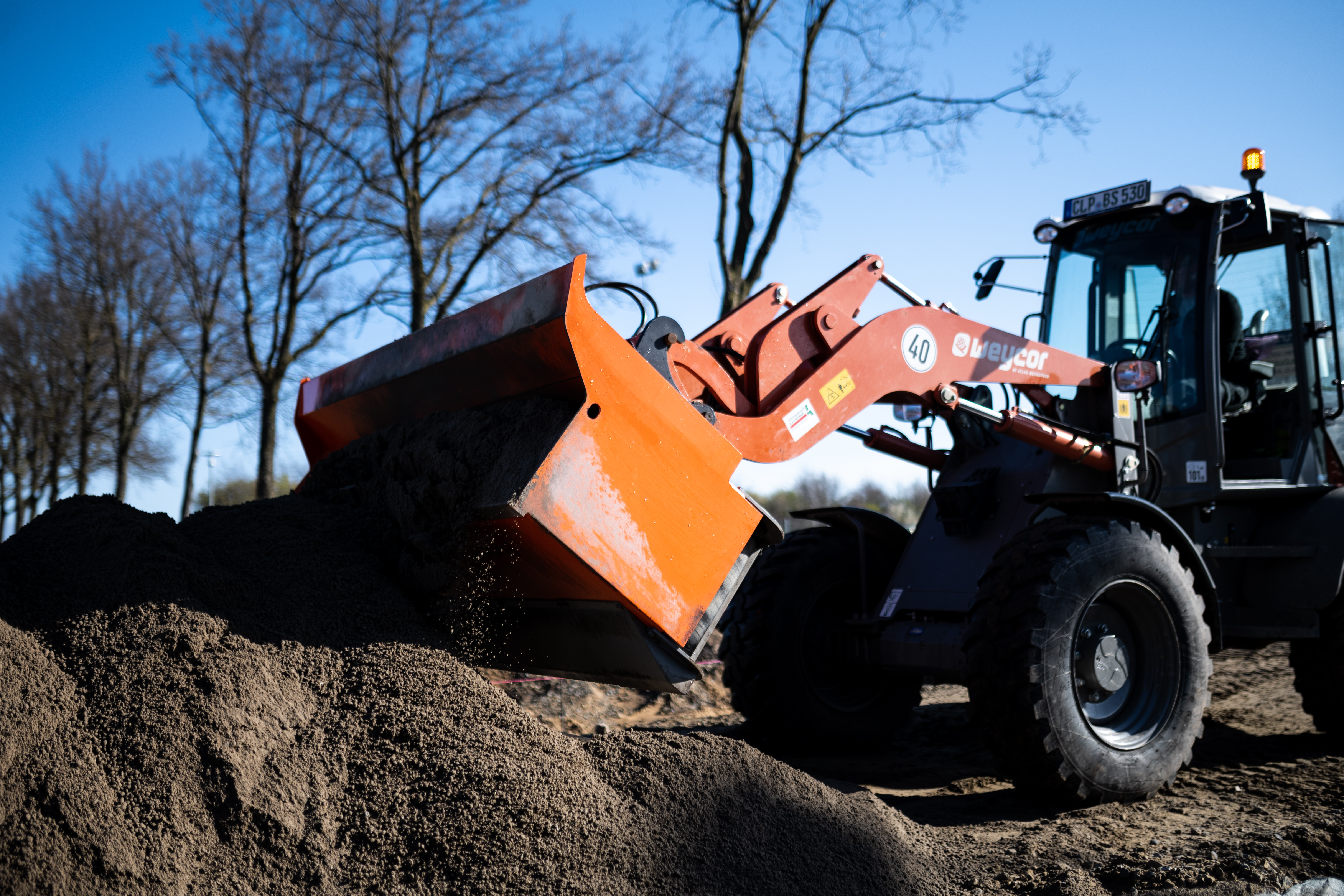

This side-shoot bucket is filled either like a conventional bucket (only applies to the 0.5 m³/1.0 m³ version) or directly from the truck or by a second wheel loader.
NEW - optional for the Finliner 1.4 m³: Mechanically adjustable truck push wheels - Finliner pushes truck in front of it. (The push wheels can be retrofitted).
The bucket is an attachment for wheel loaders (1.4 m³ bucket also for Unimog) and is mounted by using the matching quick-change coupling.
The self-loading 0,5 m³/1.0 m³ Side-shoot bucket is not only used for road shoulder maintenance, but is also very efficient for material-distribution work for foundations for kerbs/gutter stones, for backfilling of ditches and canals in line-construction and filling of e.g. container, sacks etc., etc. a hidden champion, mulit-talented.
The 1.4 m³ Side-shoot bucket is mainly used for road shoulder maintenance. The economical alternative to the traditionally used huge machinery.
Existing clients from different fields use it for:
Municipality:

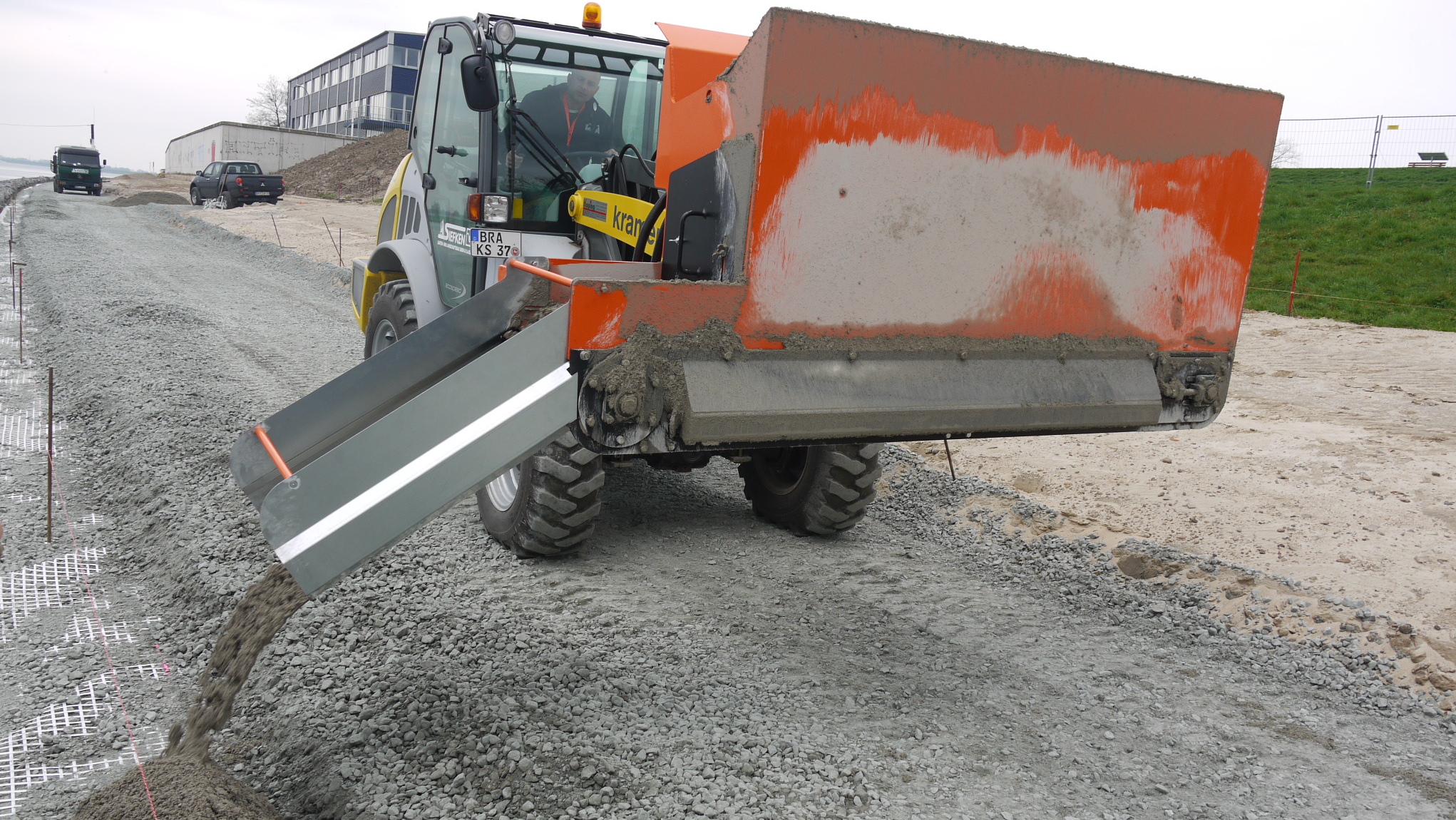

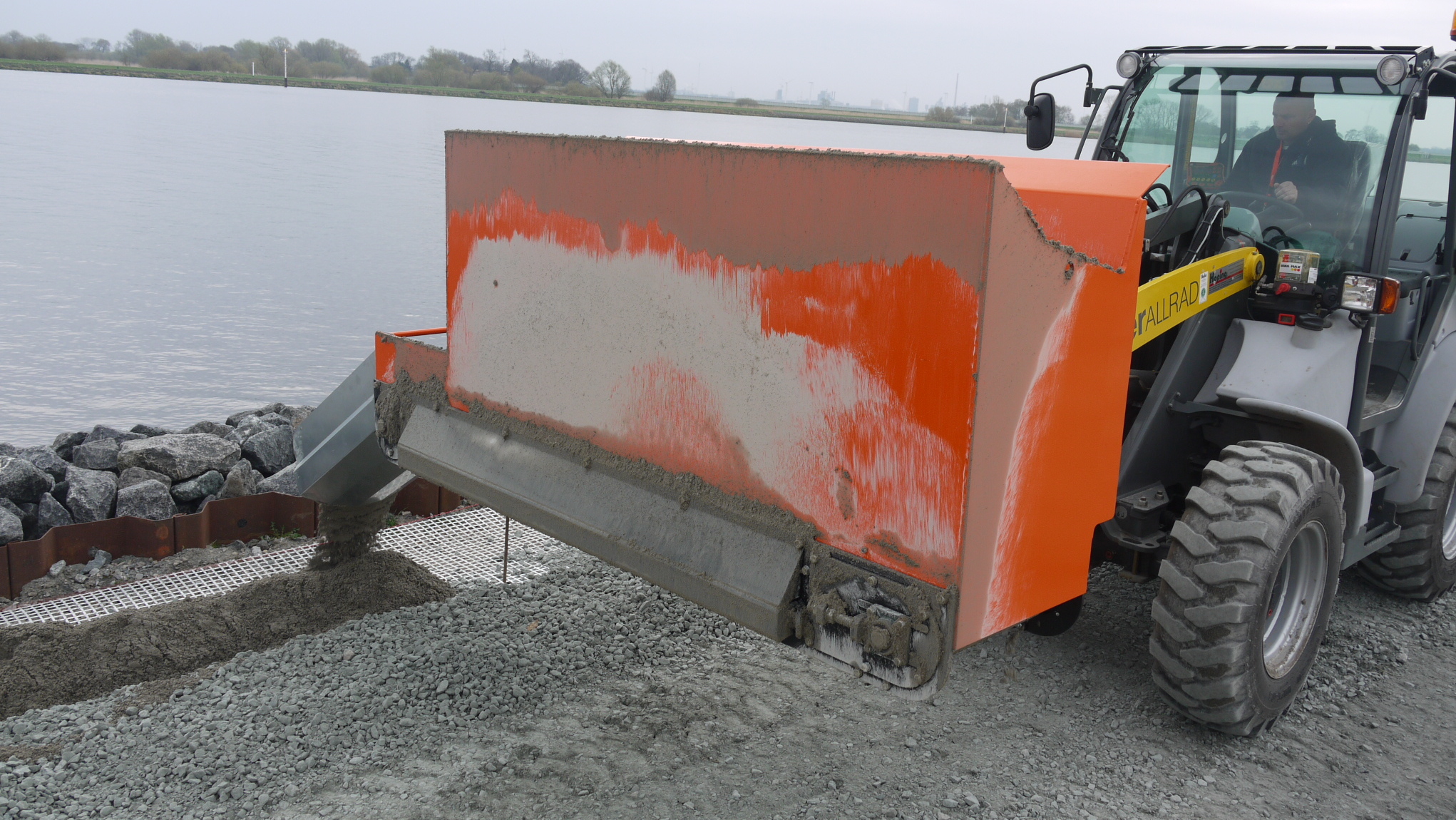

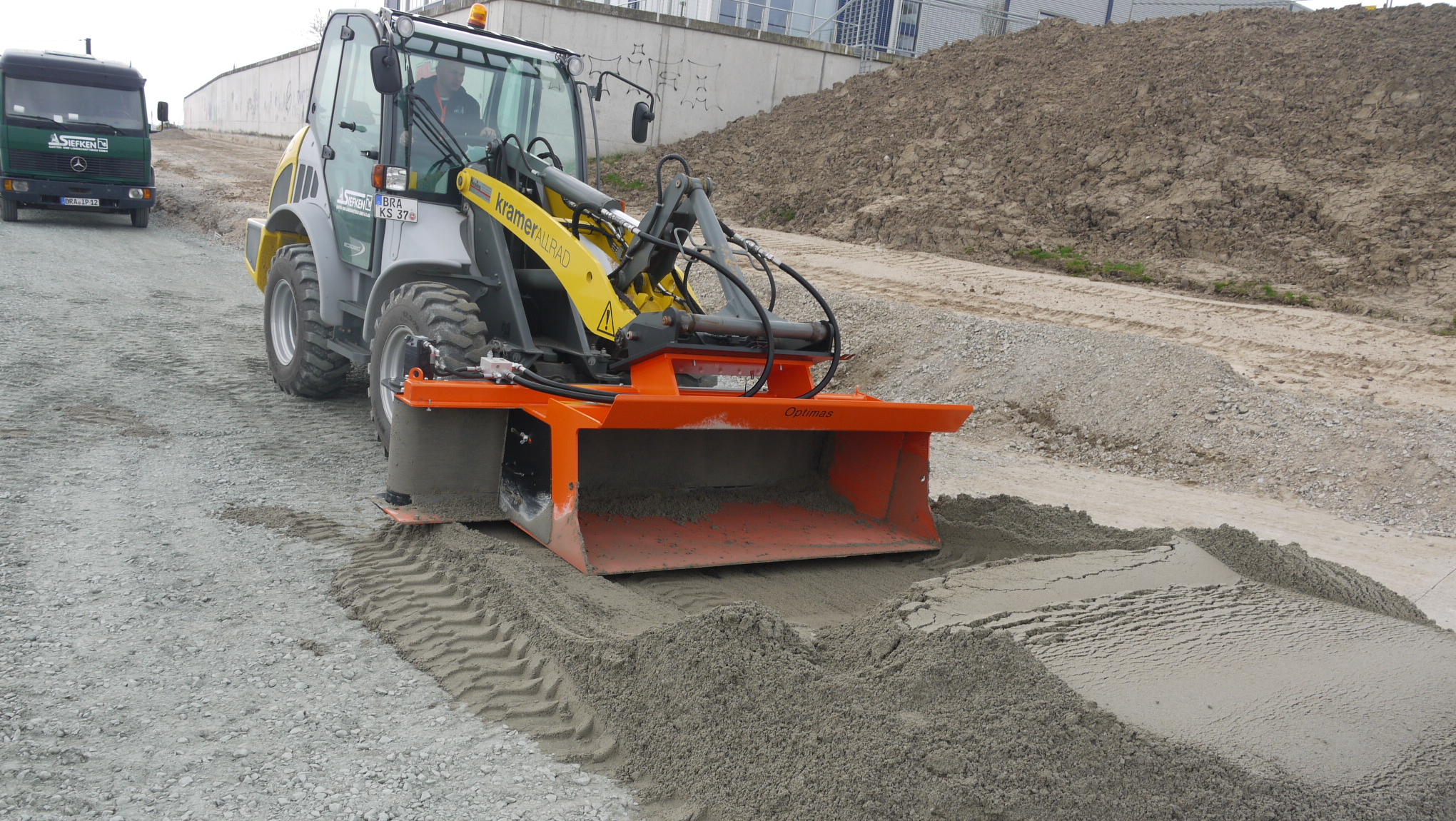

- Distribution of gravel/chippings in road shoulder maintenance (with the screed blade, material is installed at the same height or can also be used for scraping out old material)
- Dispensing road salt in container
- Distribution of wood chips in plant strips
- Flood protection: Filling of sand hoses / sand bags
Road construction:
- Distribution of concrete for bedding and haunching of kerbs
- Distribution of topsoil in a designated green strip
- Distribution of gravel/chippings in road shoulder maintenance (with the screed blade, material is installed at the same height or can also be used for scraping out old material)
Line construction:

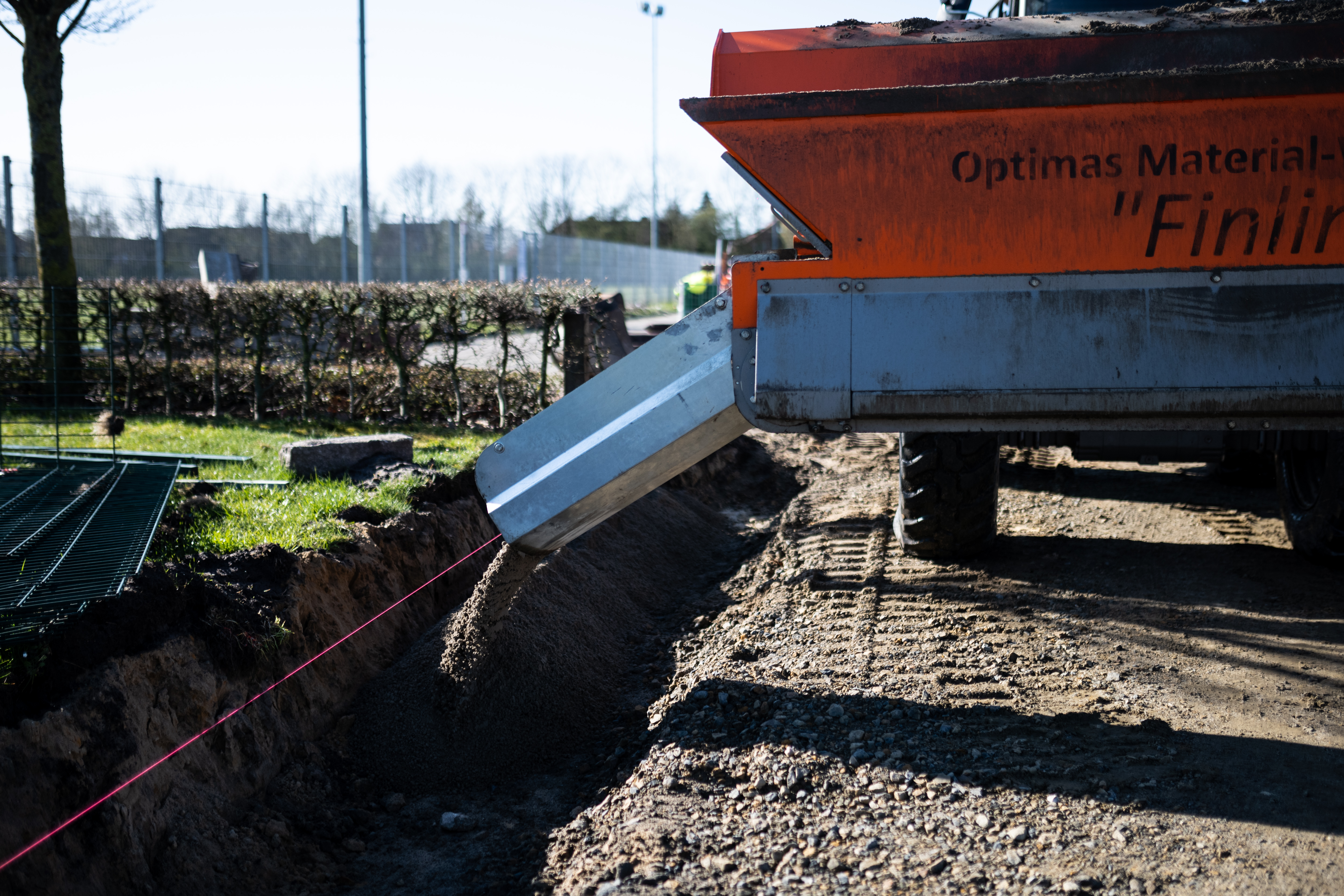

- Backfill of ditches and pipes
- Distribution of asphalt during repair work
Sports field construction:
- Backfill of drainage ditches
Your advantages:
- Time saving
- Material savings
- Easy to use
- Work facilitation
- Precise dosage
- Low space requirement - wheel loader runs parallel to the unloading point
- Self-loading or external loading by truck or wheel loader
- Many application possibilities
- Quick and easy mounting by using a quick-change coupling
Special option:
Also available with left ejection for mounting on telescopic loaders.
| Capacity: | Finliner 0.5 m³: filled to the edge 0,5 m³ - heaped 0,6 m³ / Finliner 1.0 m³: filled to the edge 0,8 m³ - heaped 1,0 m³ / Finliner 1.4 m³: fill to the edge 1,1 m³ - heaped 1,4 m³ |
| Filling width: | Finliner 0,5 m³: 1,83 m (6,0 ft) / Finliner 1,0 m³+1,4 m³: 2,6 m (8,5 ft) |

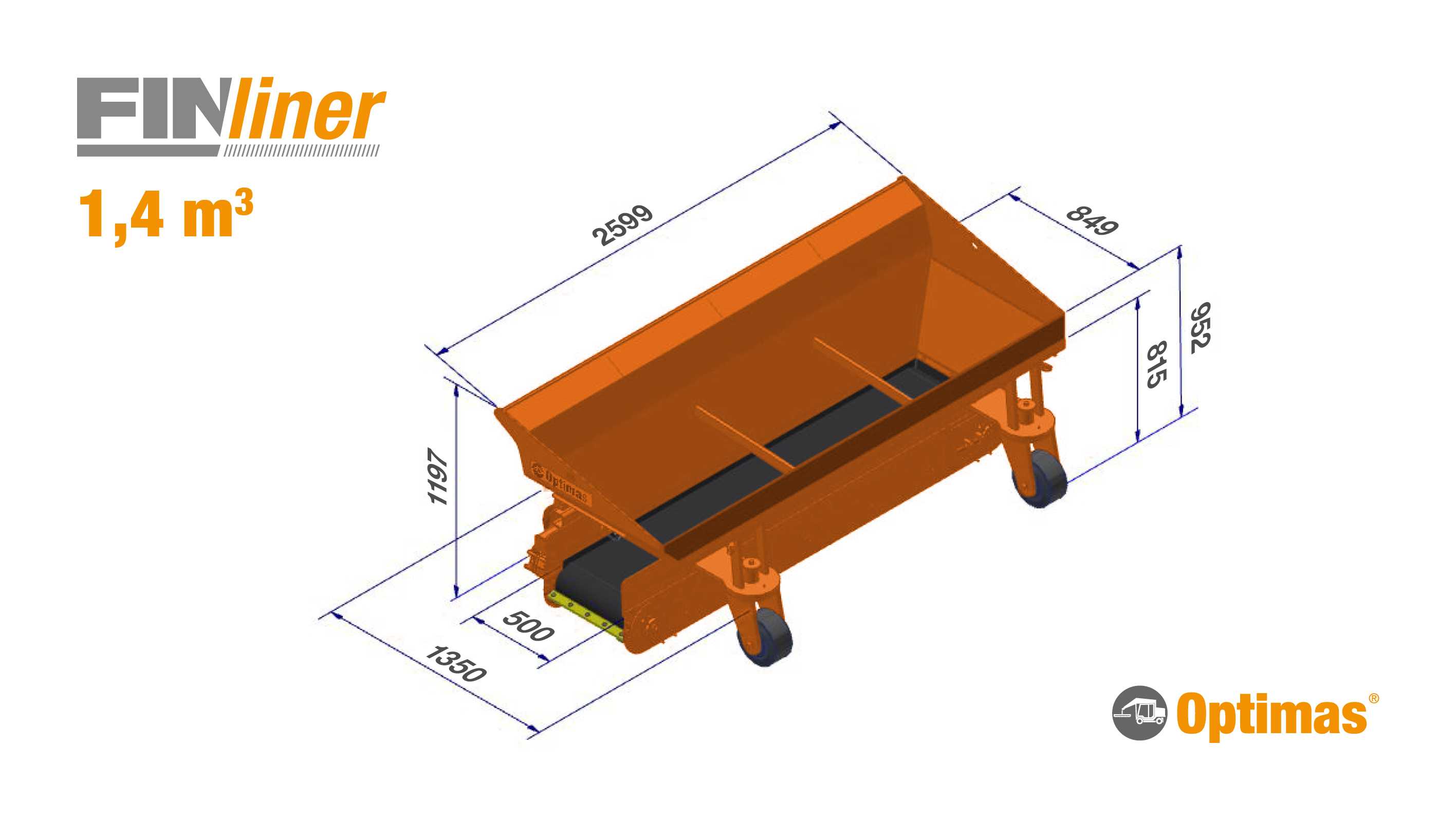

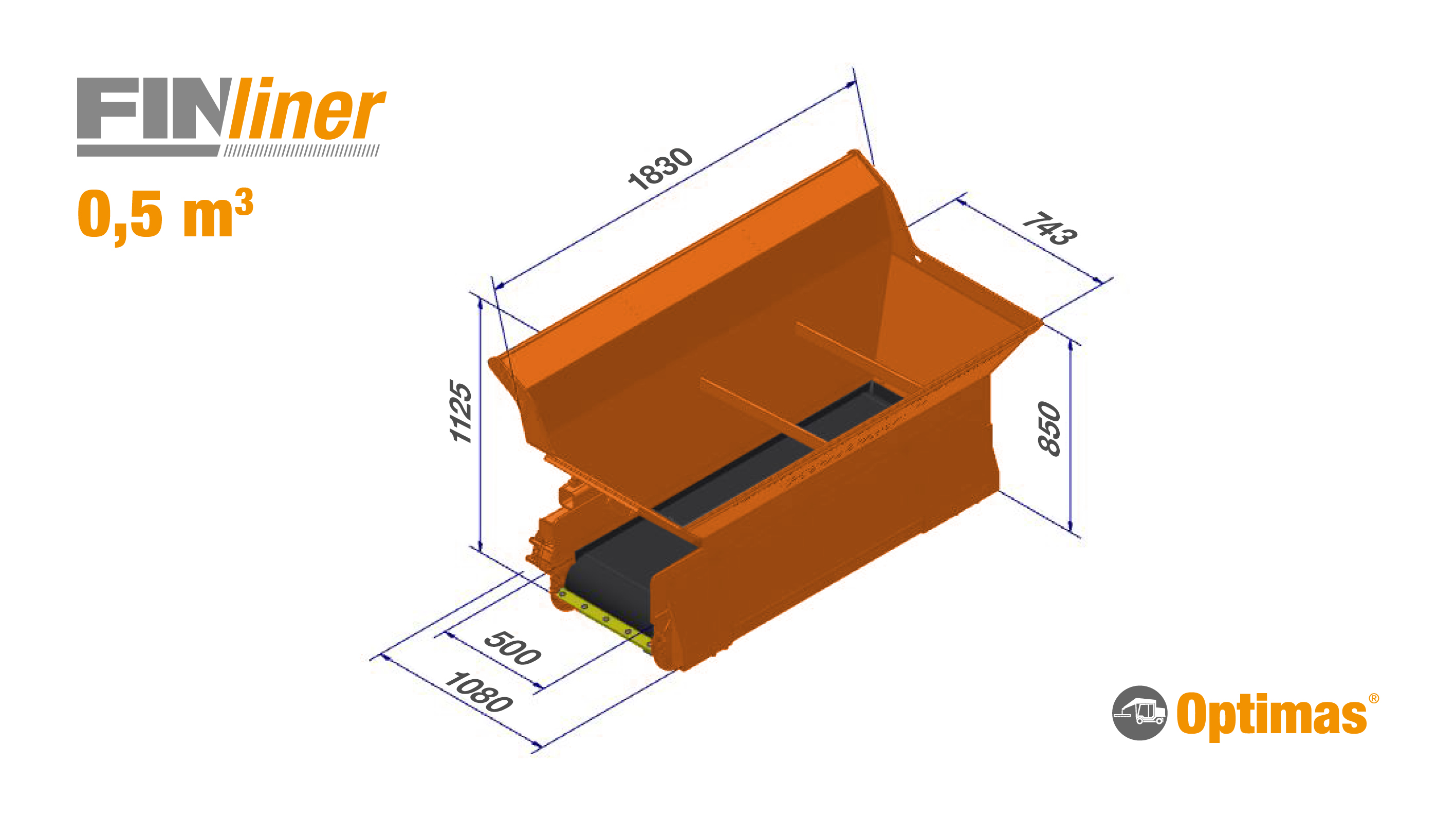

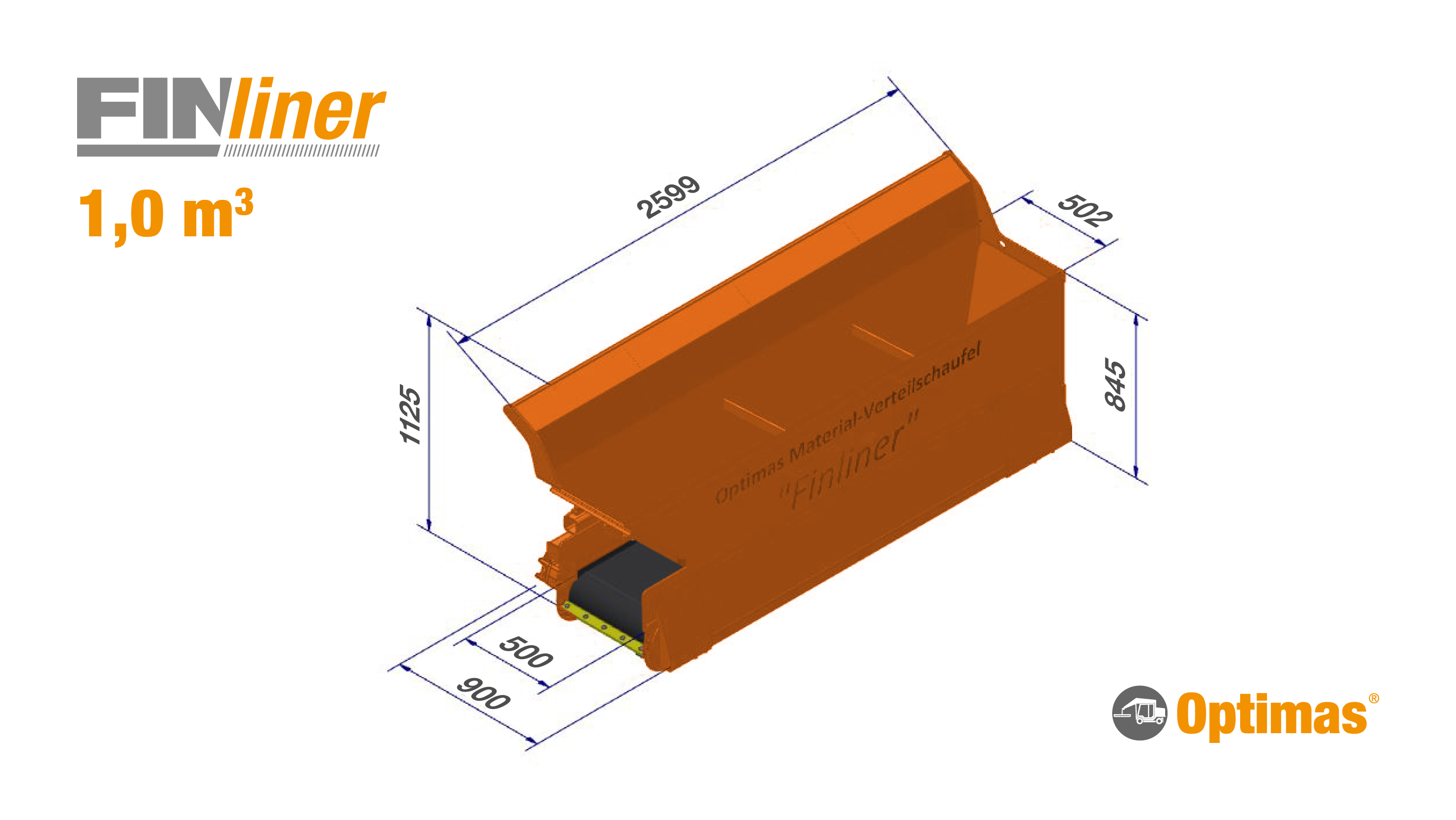

| Transport dimensions: | Finliner 0.5 m³: L 1830 x W 1080 x H 1125 mm / Finliner 1.0 m³: L 2599 x W 900 x H 1125 mm / Finliner 1.4 m³: L 2599 x W 1350 x H 1197 mm |
| Length: | Conveyor belt: Finliner 0,5 m³ = 1,70 m (5,6 ft) / Finliner 1,0 m³+1,4 m³= 2,50 m (8,2 ft) |
| Weight: | Finliner 0.5 m³ = 640 kg (1,411 lbs) / Finliner 1.0 m³ = 820 kg (1,808 lbs) / Finliner 1.4 m³ = 1.120 kg (2,469 lbs) |
| Scope of application: | Road shoulder maintenance, Concrete spreading, Line construction / Filling ditches, Material distribution, Edging/Haunching |
| Type of product: | Attachments |
