Optimas Vacu-Magnet 500 / 1500 P/H

  • 52188-52218
  • The highly compact dimensions of the Vacu magnet means that it can be fitted to any carrier machine. Depending on its design, the Vacu-Magnet performs weightless, exact and economical paver laying of up to 500 kg or 1,500 kg (special versions up to 10,000 kg) concrete and natural stone elements.

    Array ( [id] => 18 [description] => Prospekt Download [filename] => https://optimas.de/media/pdf/b0/f1/ce/Prospekt-Vacu-Magnet-500-1500.pdf [size] => 2887044 [attributes] => Array ( [core] => Shopware\Bundle\StoreFrontBundle\Struct\Attribute Object ( [storage:protected] => Array ( [id] => 5 [downloadID] => 18 [downloadfrontendname] => Brochure Download [downloadlinktranslatable] => 948 [hidedownloadinshop] => 0 ) ) ) ) 1
  • Brochure Download
  • Manual / Spare parts list
Vacu-Magnet 500 / 1500 P/H
Natural stone, concrete and marble pavers, step tread, kerbstones etc. and up to 500 kg or 1500... more

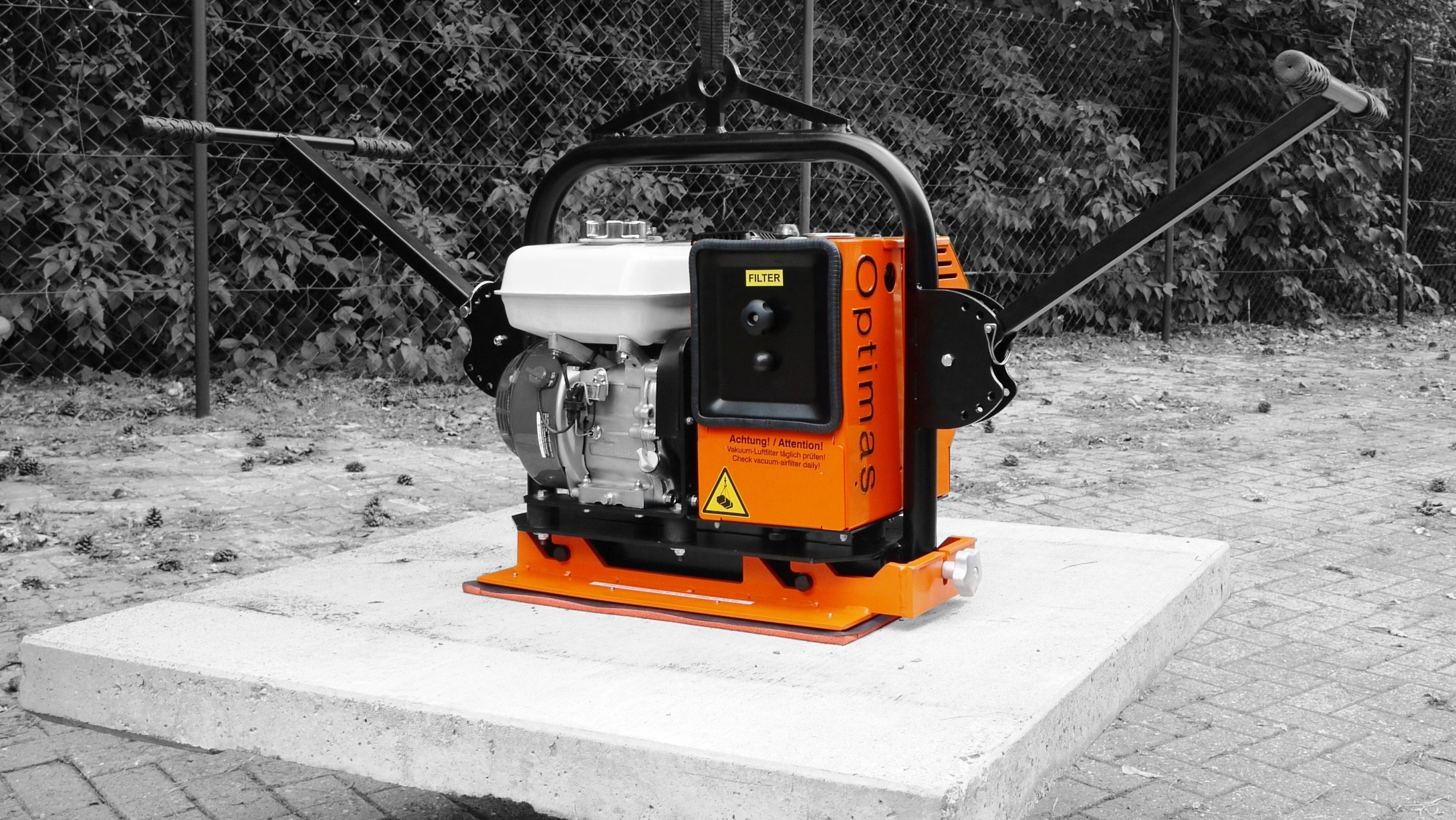

Vacu-Magnet 500 / 1500 P/H

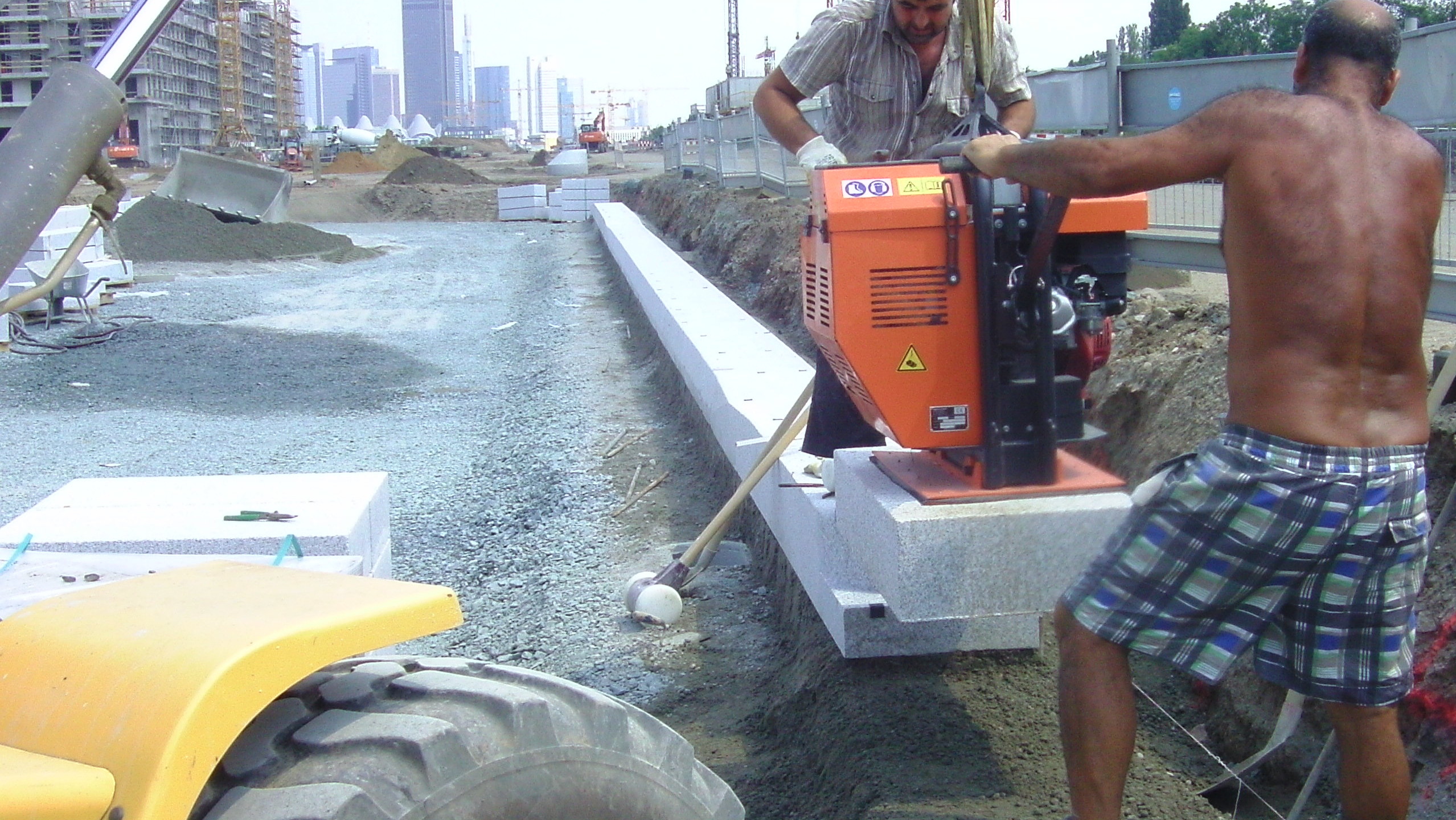

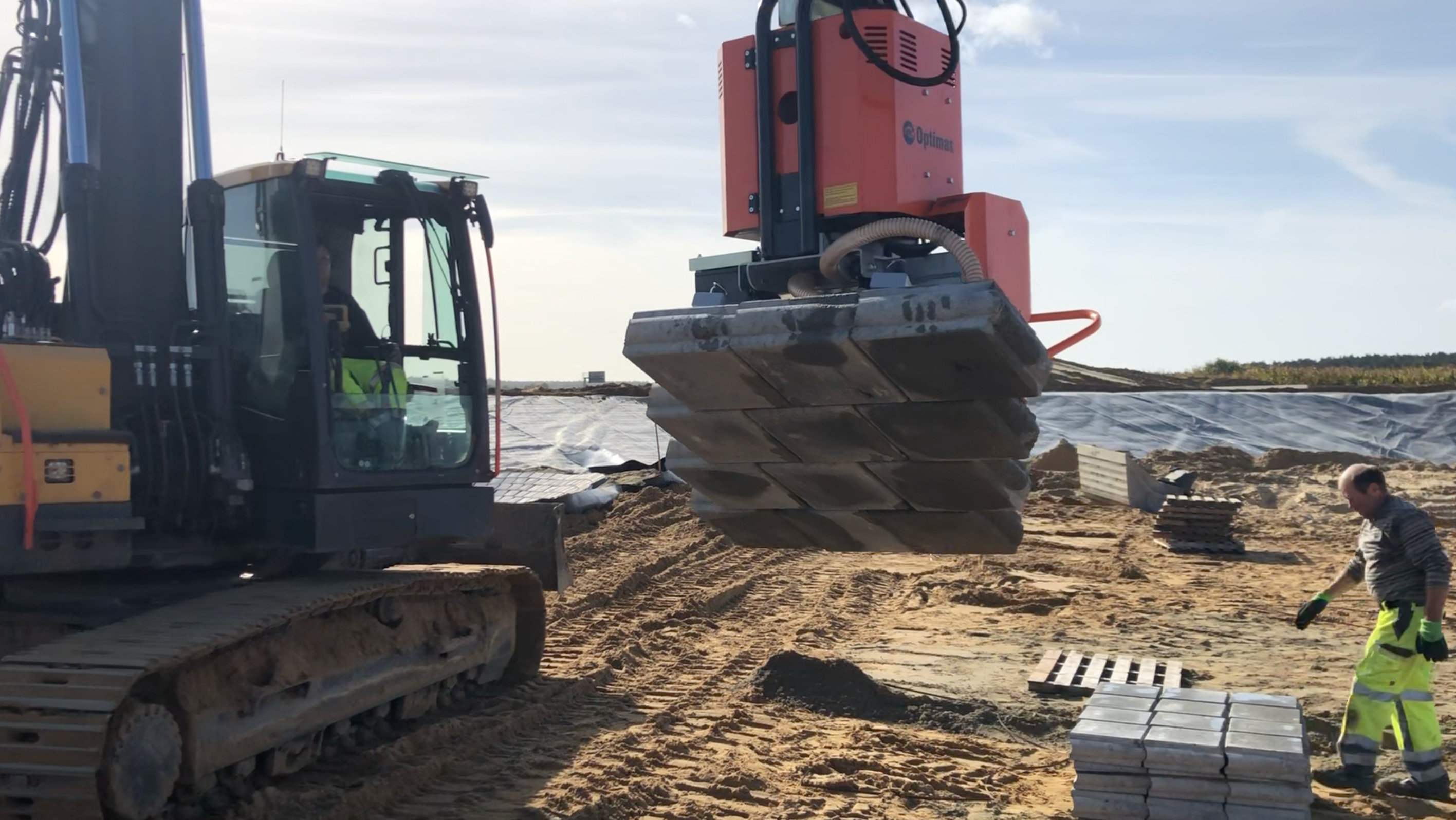

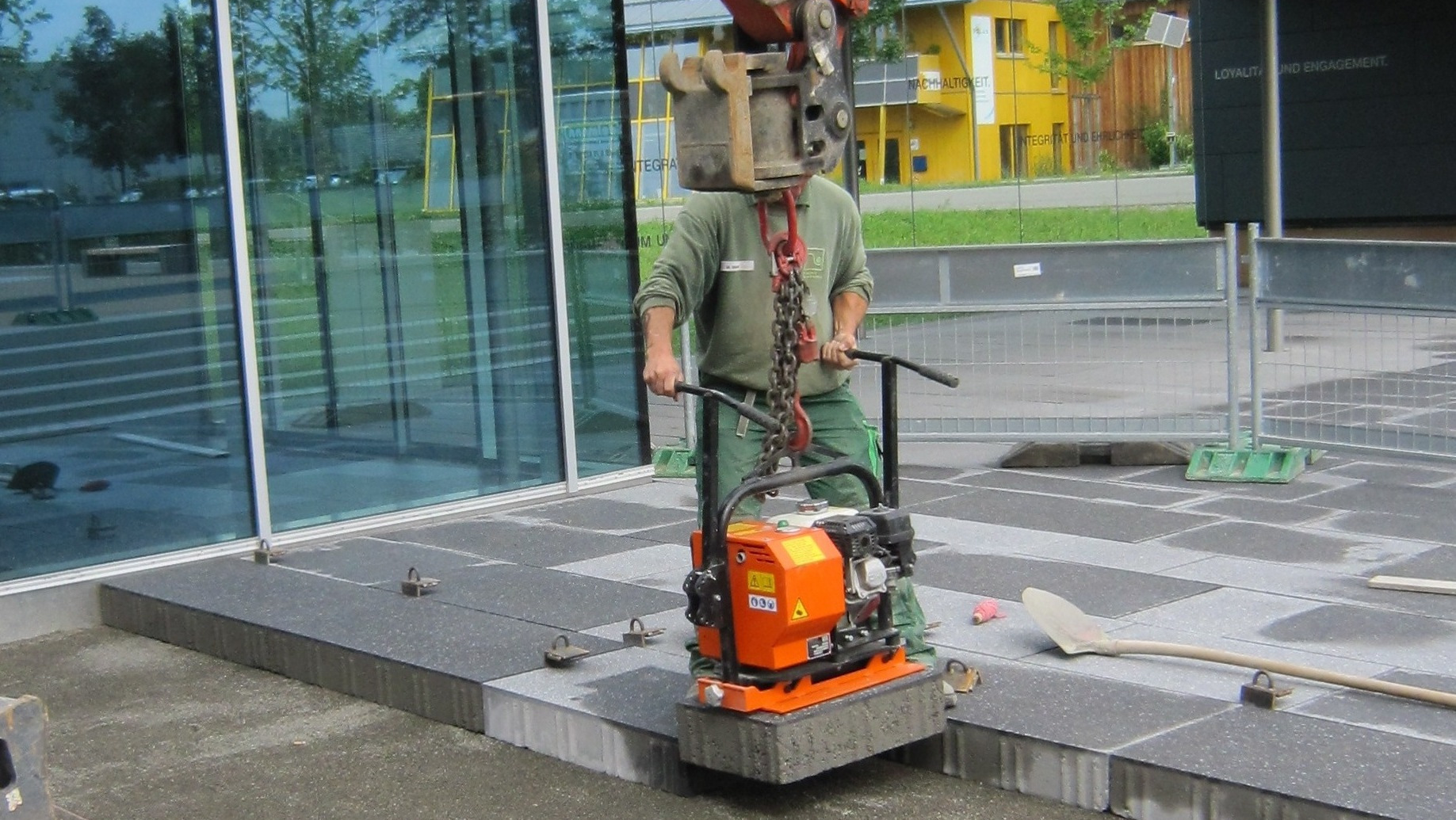

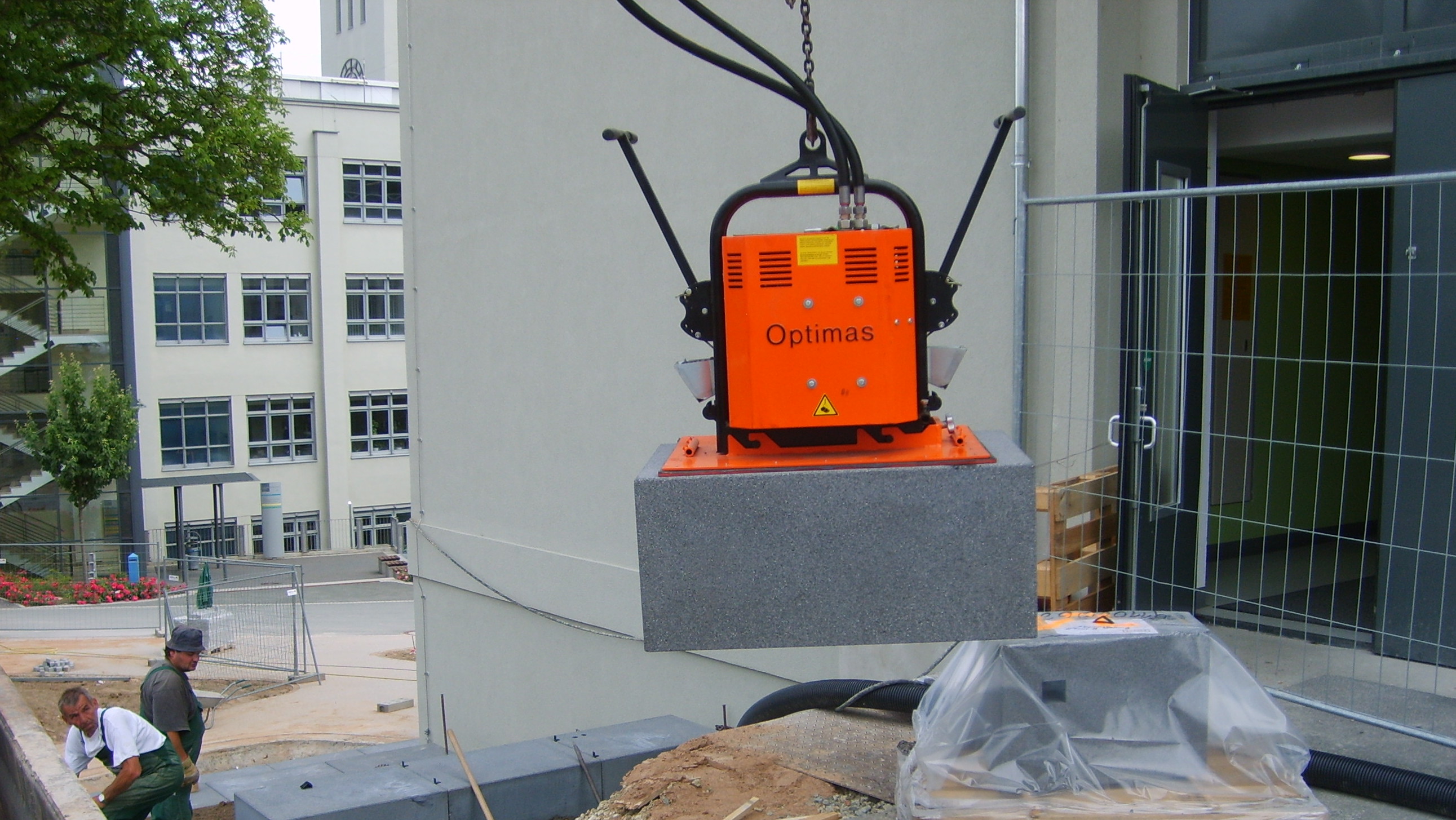

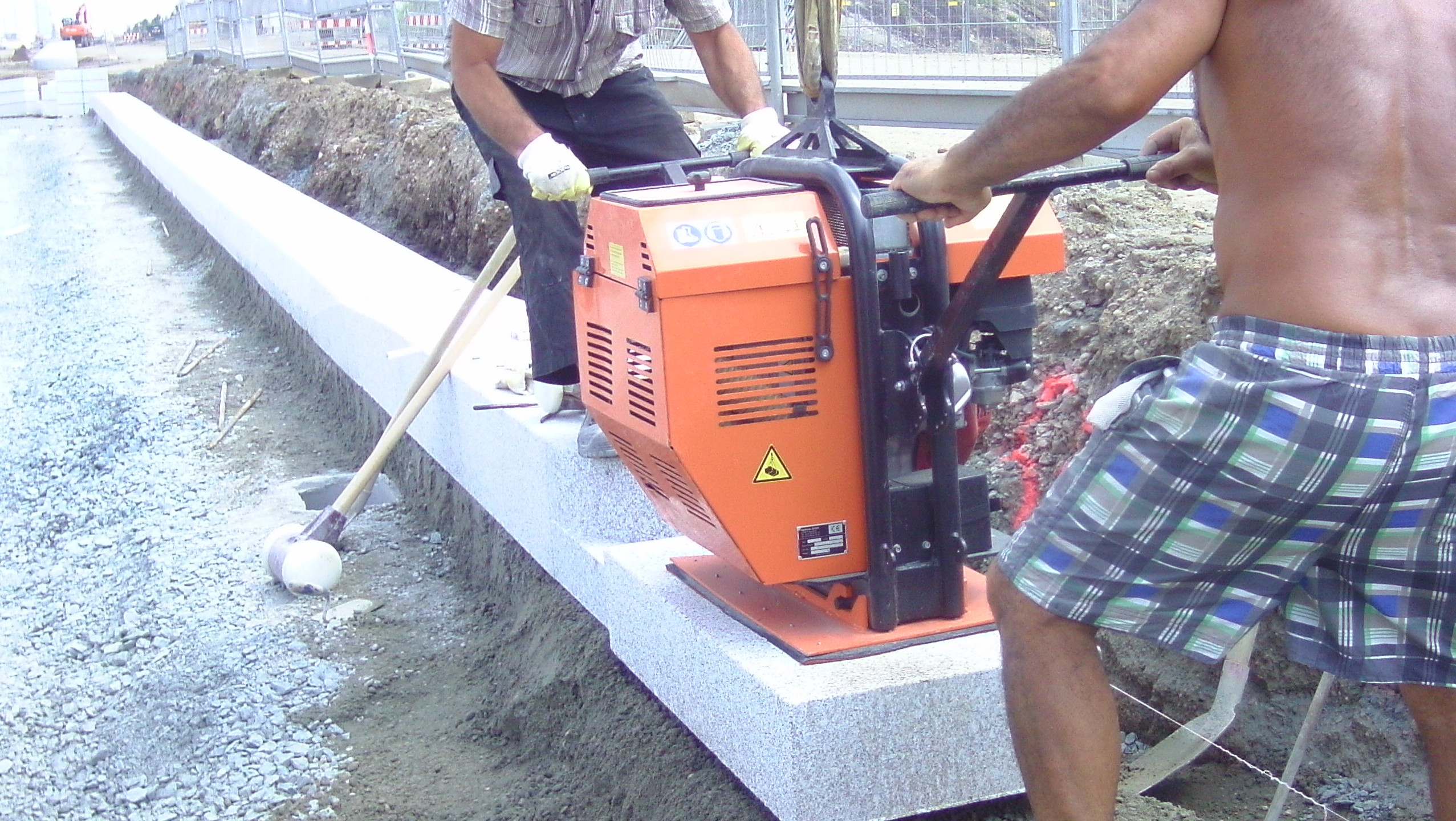

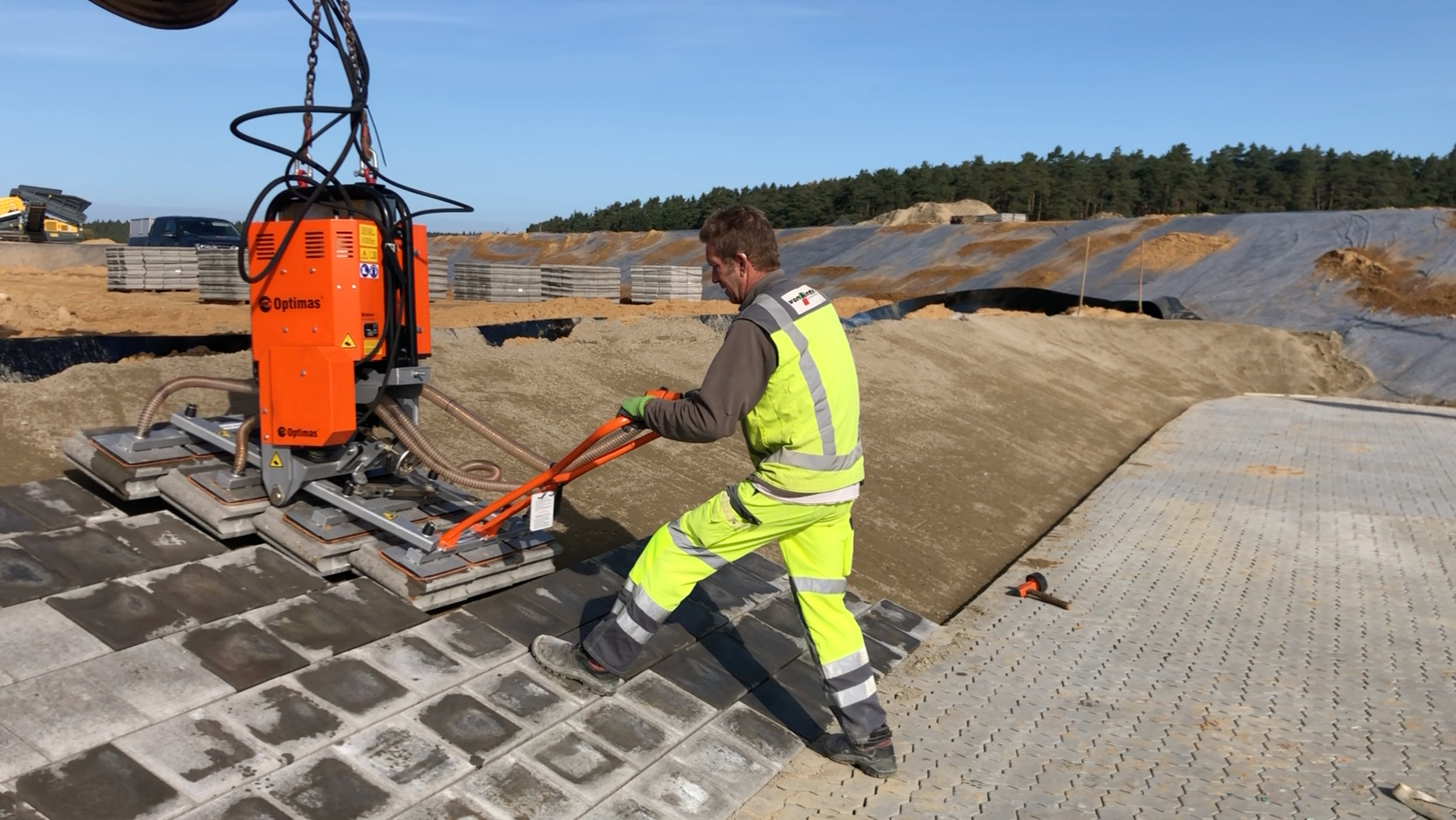

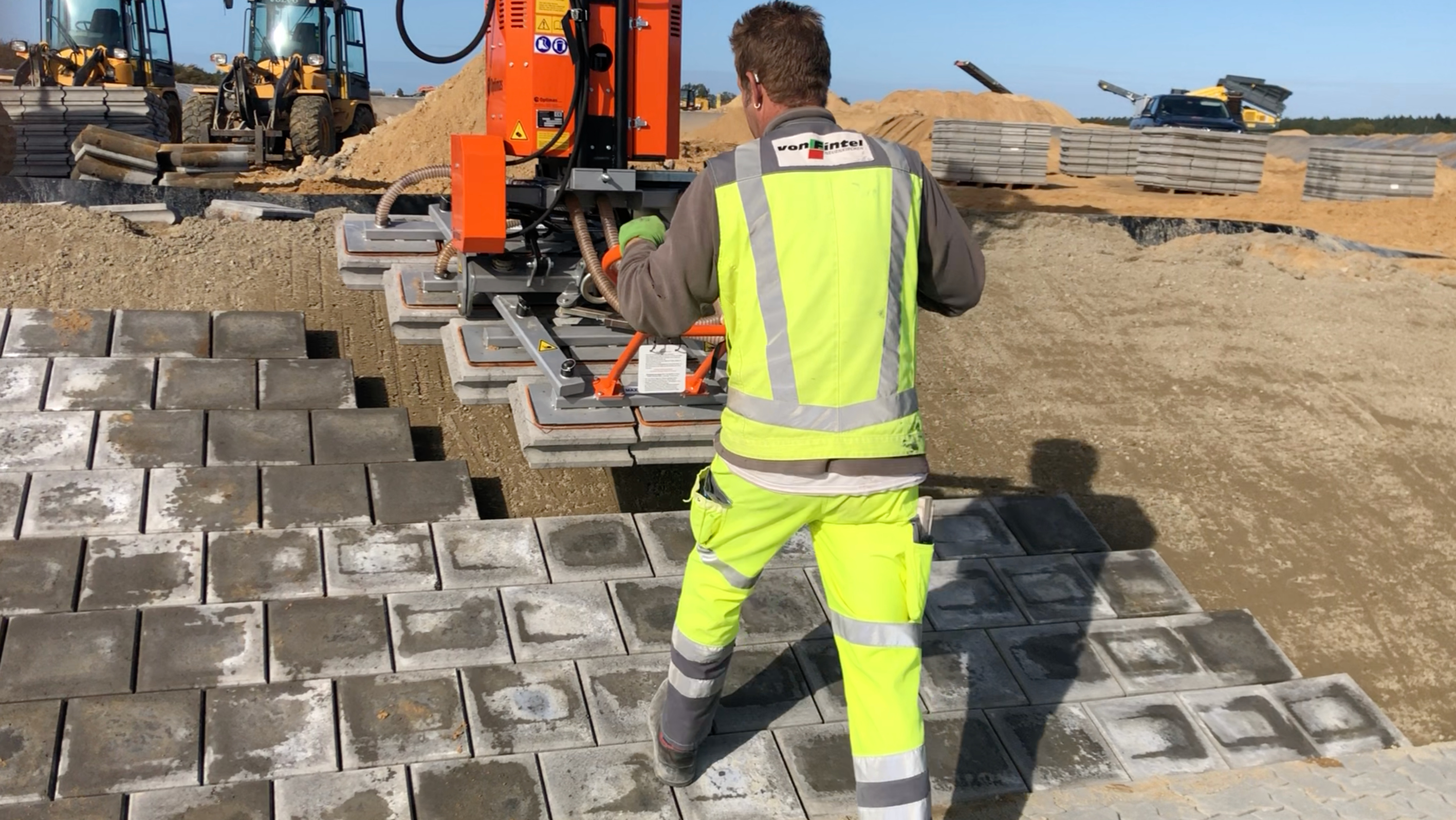

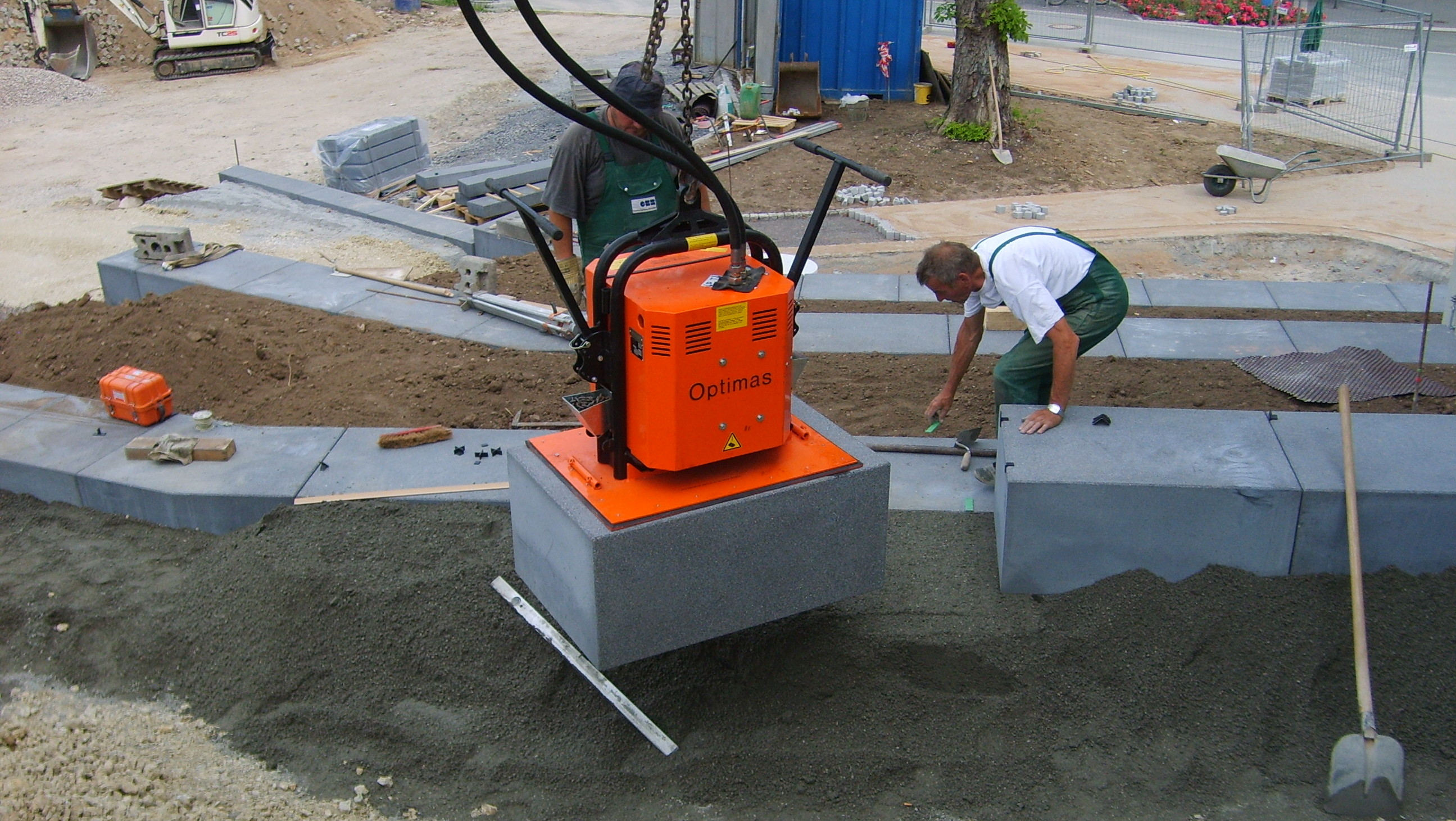

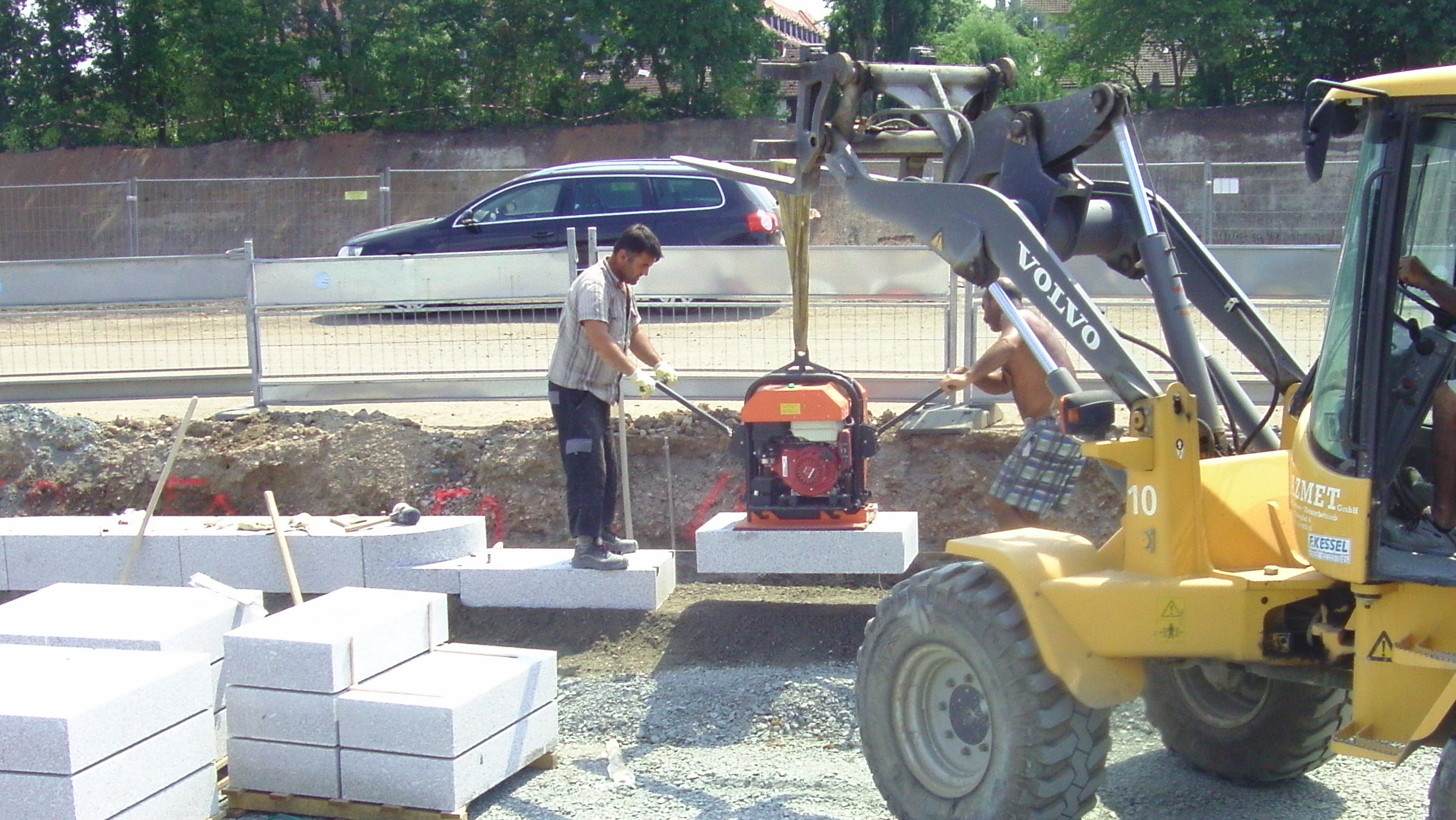

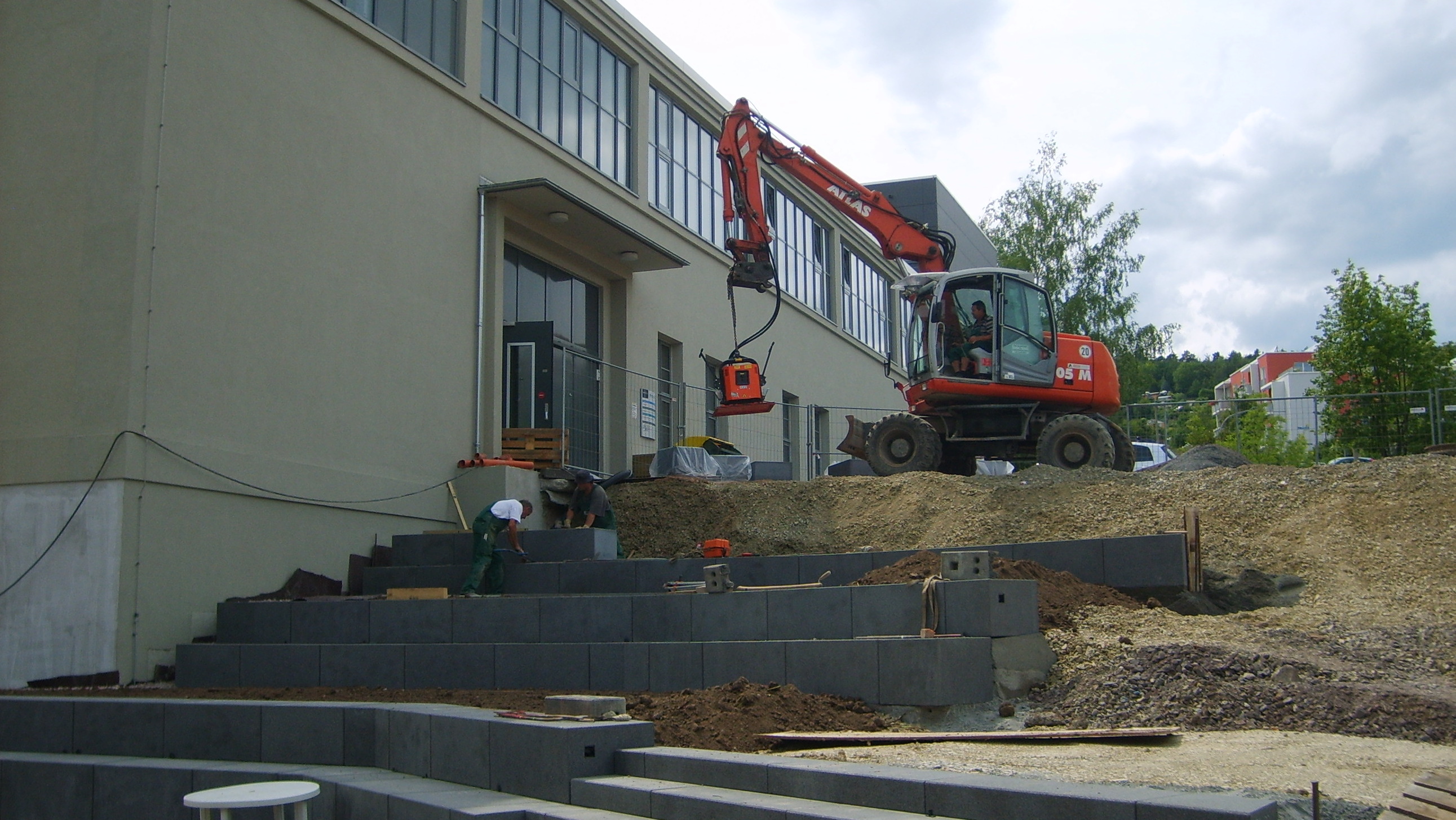

Natural stone, concrete and marble pavers, step tread, kerbstones etc. and up to 500 kg or 1500 kg can be raised and moved with no difficulty.

We can also supply a Vacu magnet with a load capacity of up to 10,000 kg!

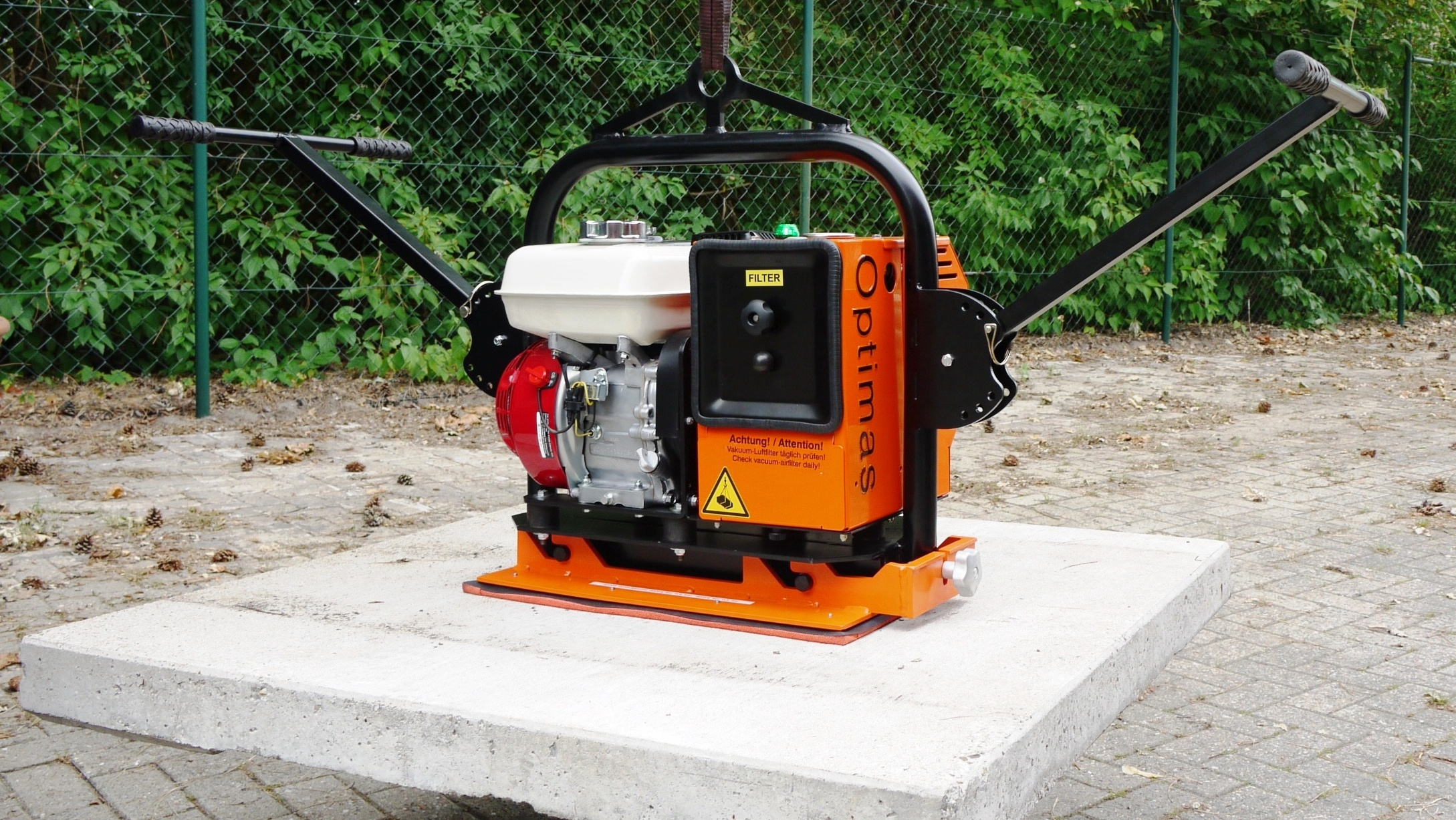

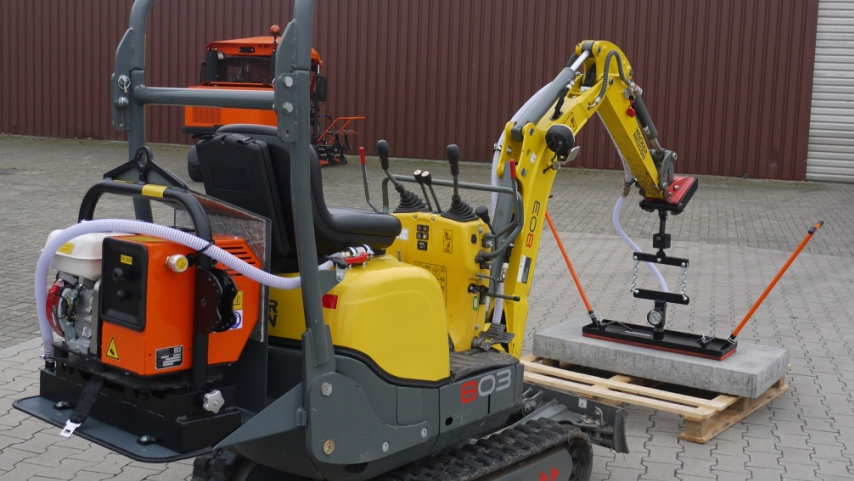

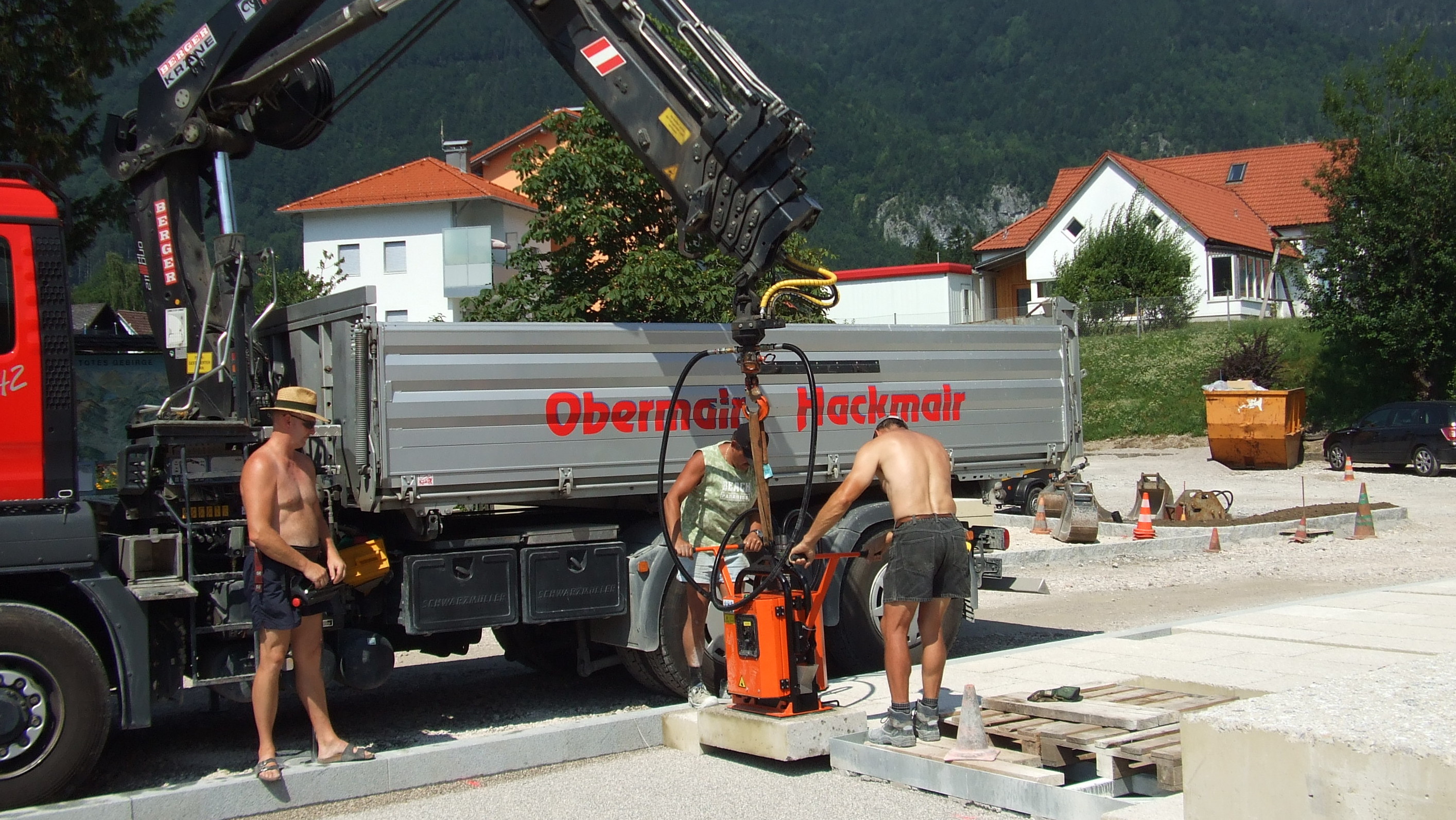

Simple fitting to every carrier machine.

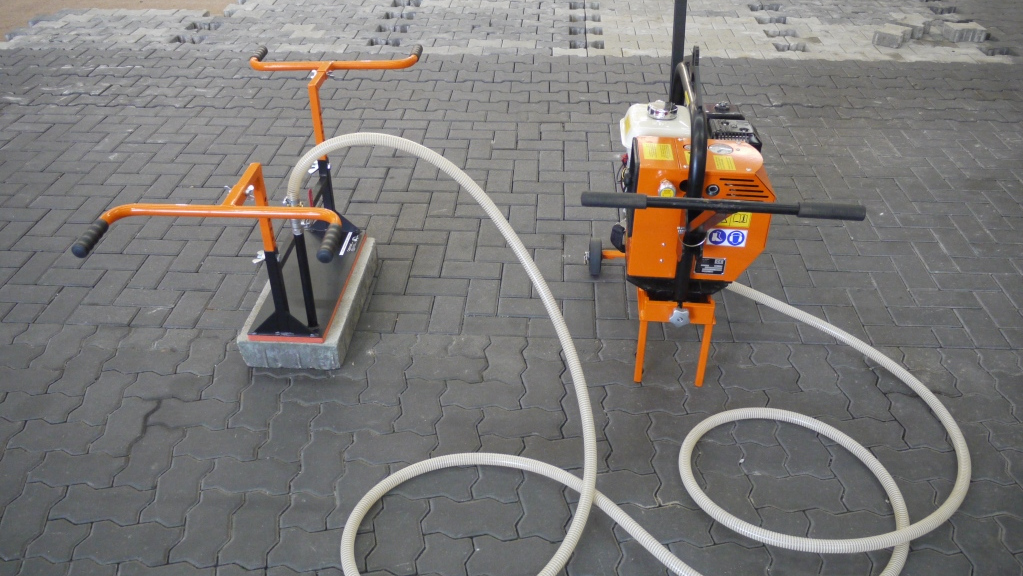

A range of suction plates are available for different used and loads.

Advantages

  • Flexible deployment
  • Simple operation
  • Quick amortization
  • Healthy working practices
  • Motivated workers
Vacuum pump: Capacity VM500: 80 m³/h / VM1500: 160 m³/h
Dimensions: VM500: 700 x 600 x 600 mm / VM1500: 630 x 700 x 720 mm
Lifting capacity: VM500: 500 kg (1.100 lbs) (min. size of the suction pad at 0.3 bar = 3,000 cm² (465 in²), VM1500: 1.500 kg (3.300 lbs) (min. size of the suction pad at 0,3 bar = 10.000 cm² (1.550 in²))
Engine: VM500: P = Honda GX200 petrol engine - 4.1 kW; 5.5 hp / H = volume flow of the wheel loader: 30 l / min; Nominal pressure: 140 bar; Back pressure: max. 10 bar, VM1500: P = petrol engine Honda GX 270 - 6 kW, 8 hp / H = volume flow of the wheel loader: 30 l/min; Nominal pressure: 140 bar; Back pressure: max. 10 bar
Weight: VM500: 70 kg (154 lbs) / VM1500: 175 kg (386 lbs)
Scope of application: Paving
Type of product: Attachments
