Optimas Vacuum Device SV 200 E
Even porous material can be lifted. Standardly equipped with two adjustable handles and ... more
Optimas Vacuum Device SV 200 E

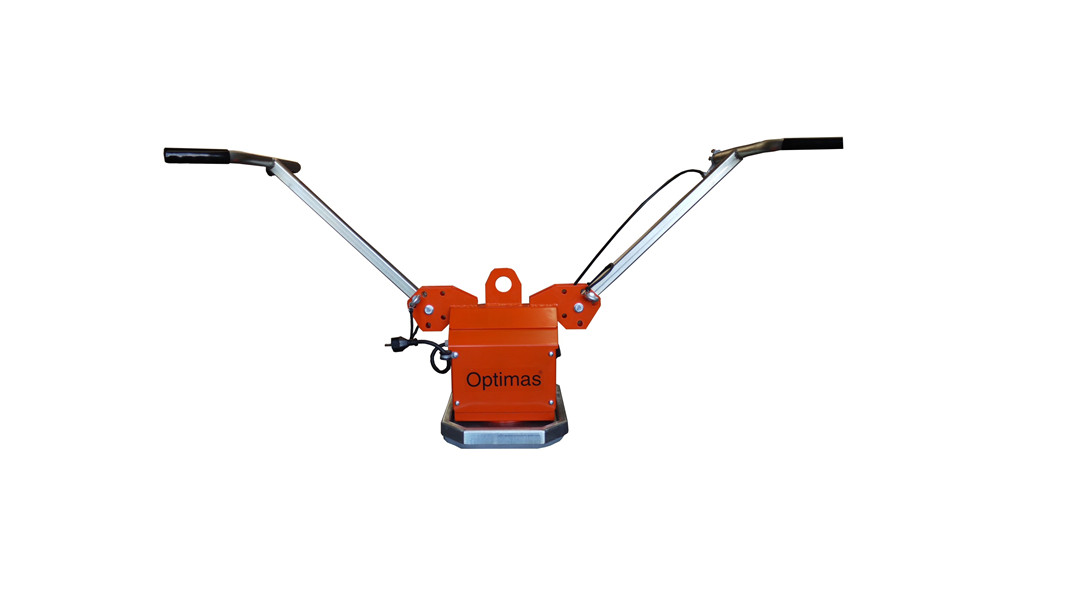

Even porous material can be lifted. Standardly equipped with two adjustable handles and

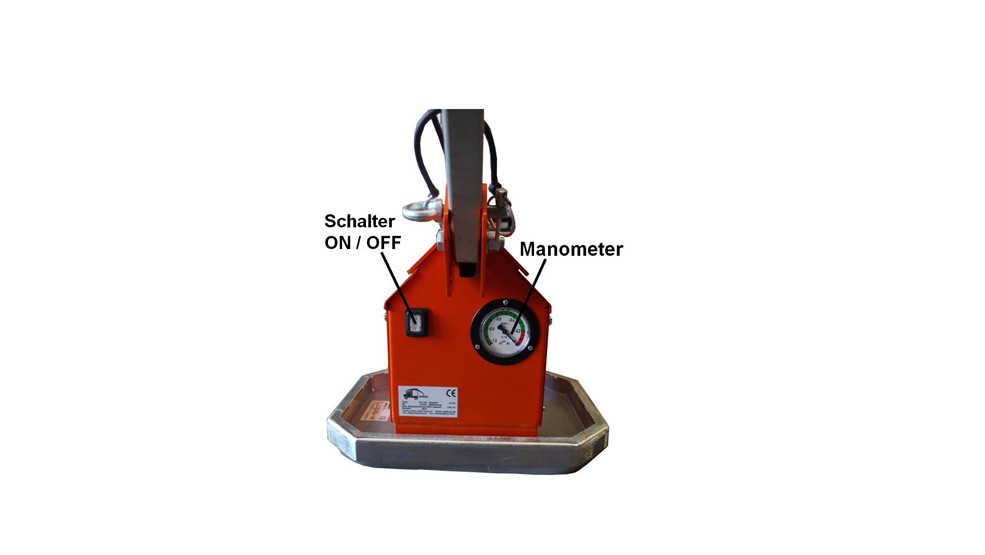

a manometer for indicating whether sufficient vacuum level is given.

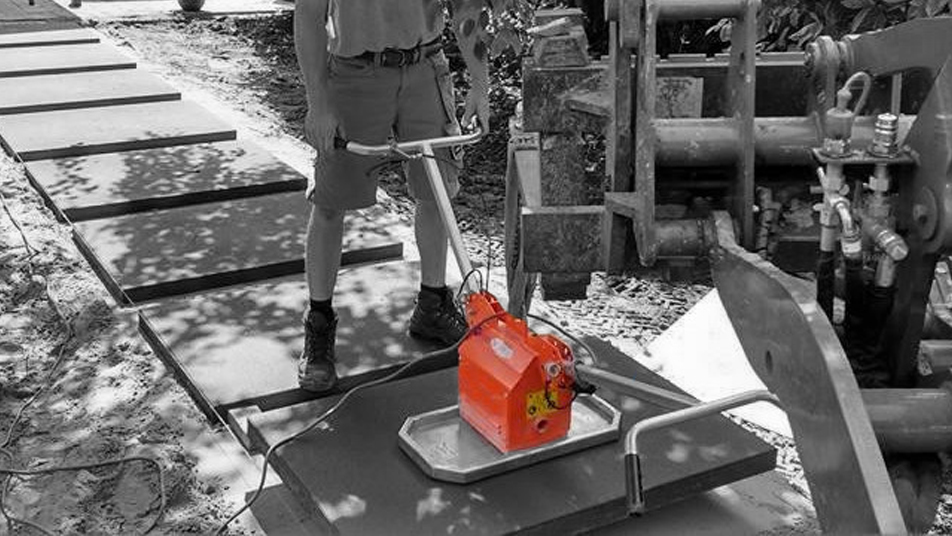

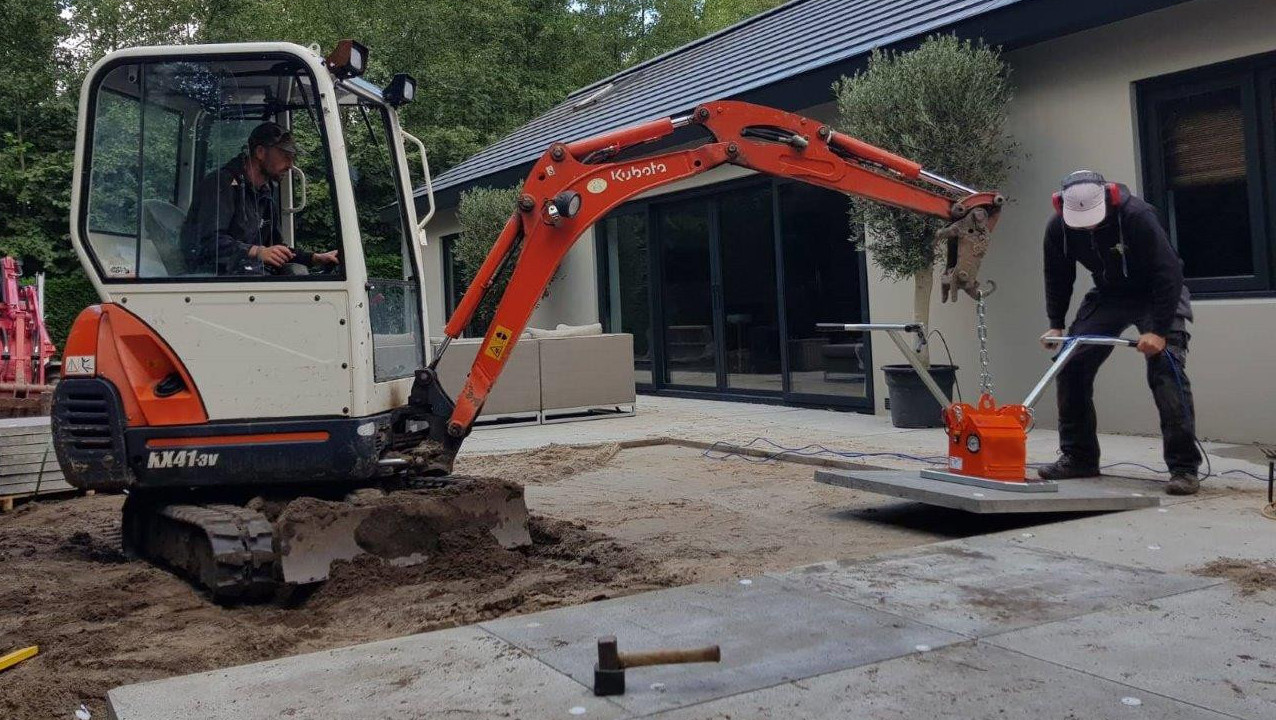

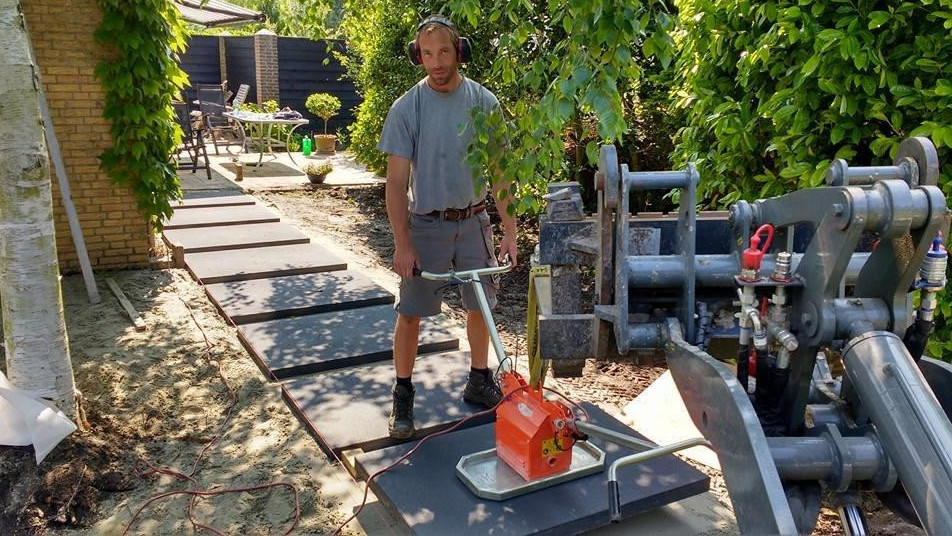

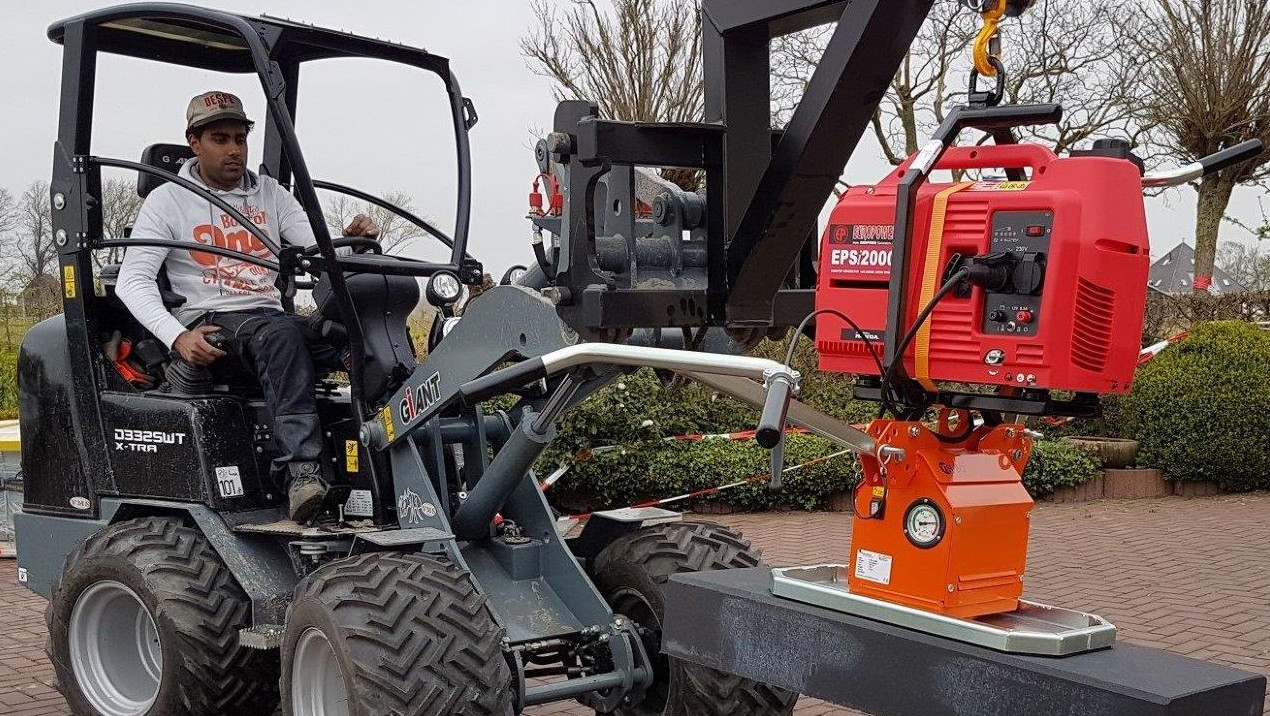

With the help of eyebolt, it can be attached to any carrier vehicle easily and quickly.

Various suction pads for different sizes and weights of slabs are available
and can be exchanged easily:

Suction pad 230 x 230 mm up to 30 kg
Suction pad 300 x 400 mm up to 95 kg
Suction pad 300 x 600 mm up to 150 kg
Suction pad 400 x 600 mm up to 200 kg
Suction pad 500 x 500 mm up to 200 kg

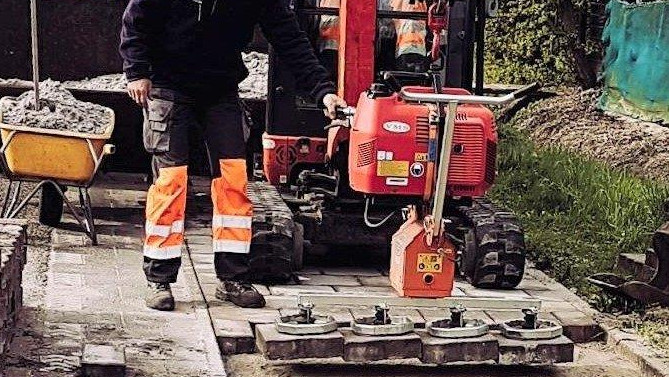

Suction pad for kerbs 13/15 & 18/20 up to 165 kg

Special sizes of suction pads can be produced on request.

Optional available:

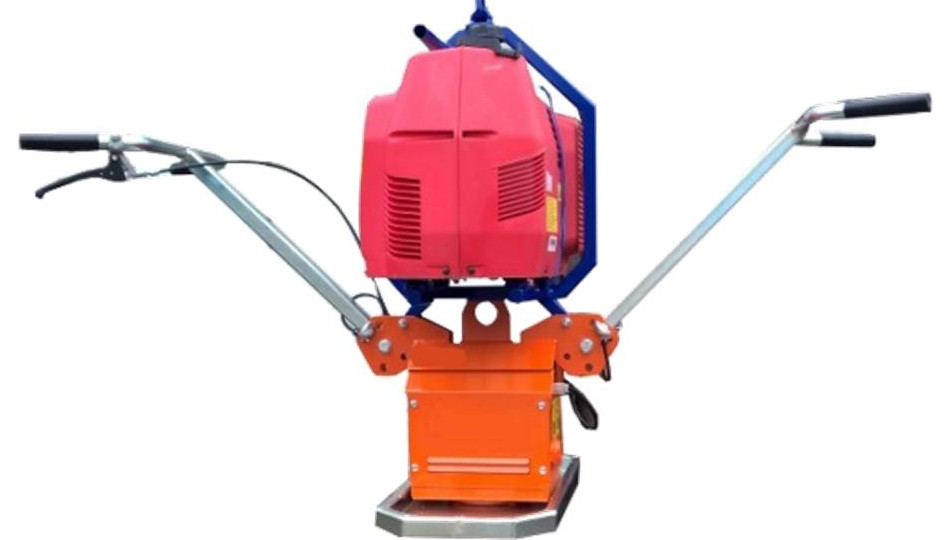

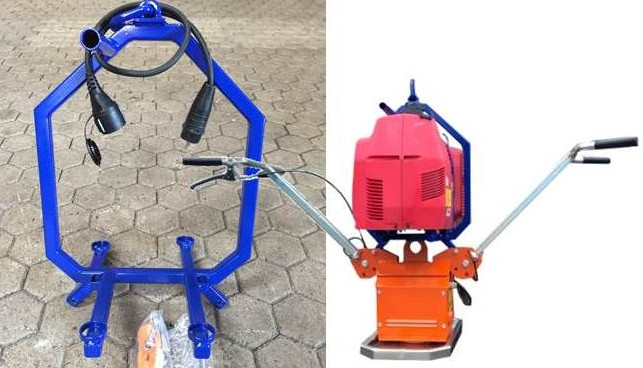

Frame for SV 200 E and generator
Generator
Voltage transformer / Inverter 2000 W

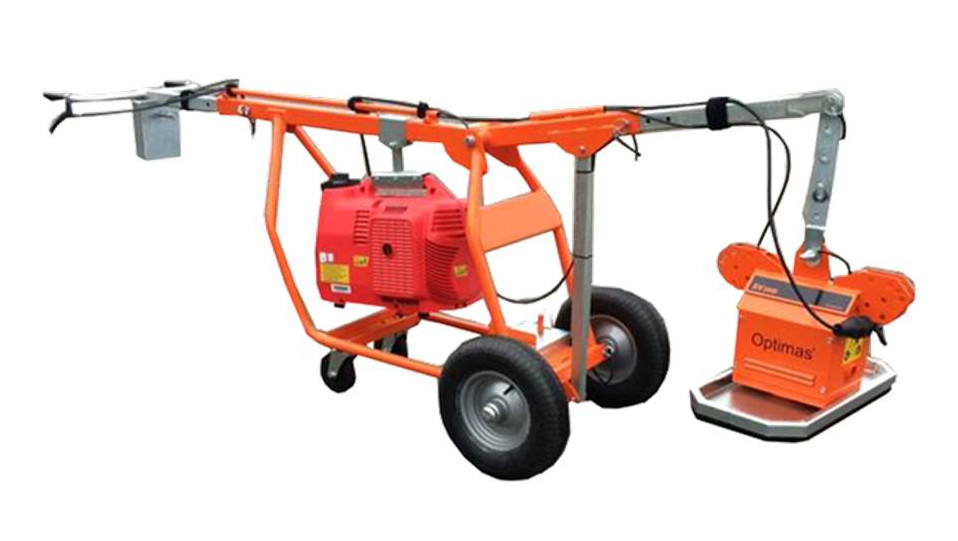

Laying cart



Vacuum pump: 16 m³
Lifting capacity: 200 kg (441 lbs)
Weight: 19 kg (42 lbs)
Scope of application: Paving
Type of product: Attachments, Tools
Technical features: 2 adjustable handles, manometer, transport lug, 10 m (32,80 ft) electric cable
